LM3477A

High Efficiency High-Side N-Channel Controller for Switching Regulator

LM3477A Features

* include internal soft-start and output over voltage protection. The internal soft-start reduces inrush current. Over voltage protection is a safety feature to ensure that the output voltage stays within regulation. The LM3477A is similar to the LM3477. The primary difference between the two is the p

LM3477A General Description

The LM3477/A is a high-side N-channel MOSFET switching regulator controller. It can be used in topologies requiring a high side MOSFET such as buck, inverting (buck-boost) and zeta regulators. The LM3477/A’s internal push pull driver allows compatibility with a wide range of MOSFETs. This, the wide .

LM3477A Datasheet (815.87 KB)

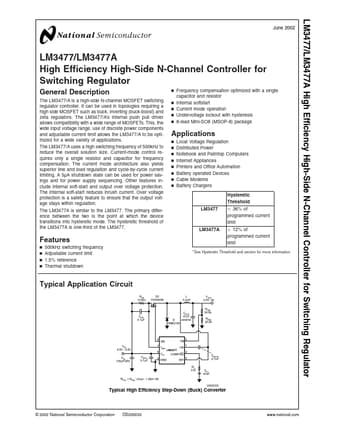

Preview of LM3477A PDF

Datasheet Details

Part number:

LM3477A

Manufacturer:

National Semiconductor

File Size:

815.87 KB

Description:

High efficiency high-side n-channel controller for switching regulator.
LM3477/LM3477A High Efficiency High-Side N-Channel Controller for Switching Regulator June 2002 LM3477/LM3477A High Efficiency High-Side N-Channel C.
