LM3503 - Dual-Display Constant Current LED Driver

Datasheet Summary

Description

The LM3503 is a white LED driver for lighting applications.

For dual display backlighting applications, the LM3503 provides a complete solution.

The LM3503 contains two internal white LED current bypass FET (Field Effect Transistor) switches.

Features

  • n Drives up to 4, 6, 8 or 10 White LEDs for Dual Display Backlighting n >80% Peak Efficiency n Output Voltage Protection Options: 16V, 25V, 35V & 44V n Input Under-Voltage Protection n Internal Soft Start Eliminates Inrush Current n 1 MHz Constant Switching Frequency n Analog Brightness Control n Wide Input Voltage Range: 2.5V to 5.5V n Low Profile Packages:.

📥 Download Datasheet

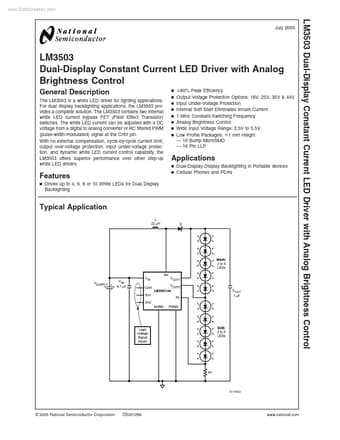

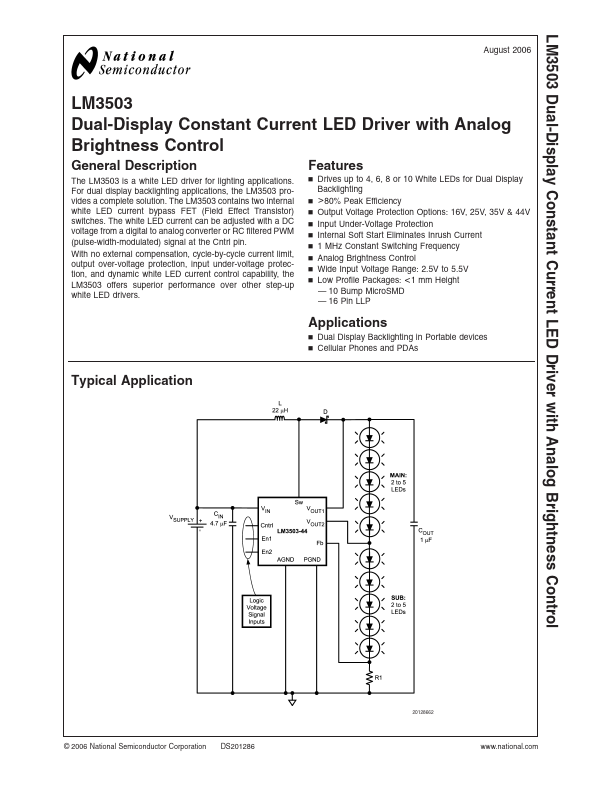

Datasheet preview – LM3503

Datasheet Details

Part number LM3503
Manufacturer National Semiconductor
File Size 0.99 MB
Description Dual-Display Constant Current LED Driver
Datasheet download datasheet LM3503 Datasheet

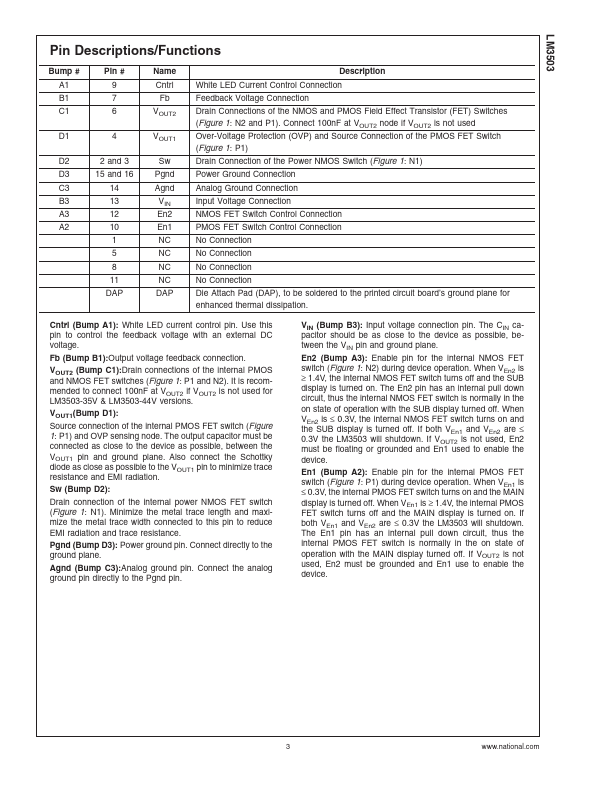

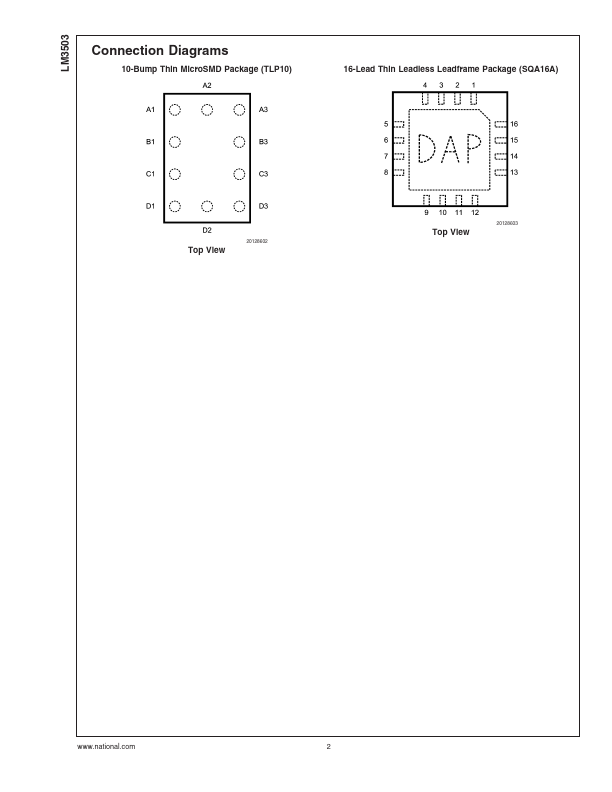

Additional preview pages of the LM3503 datasheet.

📁 Similar Datasheet

  • LM3503 - Dual-Display Constant Current LED Driver (Texas Instruments)
  • LM350 - Three-terminal Positive Voltage Regulator (Motorola)
  • LM350 - 3-Amp Adjustable Regulator (Texas Instruments)
  • LM350 - 3 Amp Positive Adjustable Regulator (Linear Technology)
  • LM350 - 3A Positive Voltage Regulator (onsemi)
  • LM350 - Three-terminal 3A adjustable voltage regulators (STMicroelectronics)
  • LM350 - 3-Terminal 3A Positive Adjustable Regulator (Fairchild Semiconductor)
  • LM350-N - 3-Amp Adjustable Regulator (Texas Instruments)
  • LM3500 - Synchronous Step-up DC/DC Converter (Texas Instruments)
  • LM3501 - Synchronous Step-up DC/DC Converter (Texas Instruments)
Other Datasheets by National Semiconductor
  • LM350 - 3-Amp Adjustable Regulators
  • LM3501 - Synchronous Step-up DC/DC Converter
  • LM3502 - Step-Up Converter
  • LM350A - 3-Amp Adjustable Regulators
  • LM35 - Precision Centigrade Temperature Sensors
  • LM351 - Dual Peripheral Drivers
  • LM3519 - High Frequency Boost White LED Driver
  • LM3520 - Integrated White LED Driver

Full PDF Text Transcription

Click to expand full text
LM3503 Dual-Display Constant Current LED Driver with Analog Brightness Control August 2006 LM3503 Dual-Display Constant Current LED Driver with Analog Brightness Control General Description The LM3503 is a white LED driver for lighting applications. For dual display backlighting applications, the LM3503 provides a complete solution. The LM3503 contains two internal white LED current bypass FET (Field Effect Transistor) switches. The white LED current can be adjusted with a DC voltage from a digital to analog converter or RC filtered PWM (pulse-width-modulated) signal at the Cntrl pin.
