LM35A, LM35 Precision Centigrade Temperature Sensors

National Semiconductor

Description

LM35 Precision Centigrade Temperature Sensors November 2000 LM35 Precision Centigrade Temperature Sensors General .
The LM35 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temper.

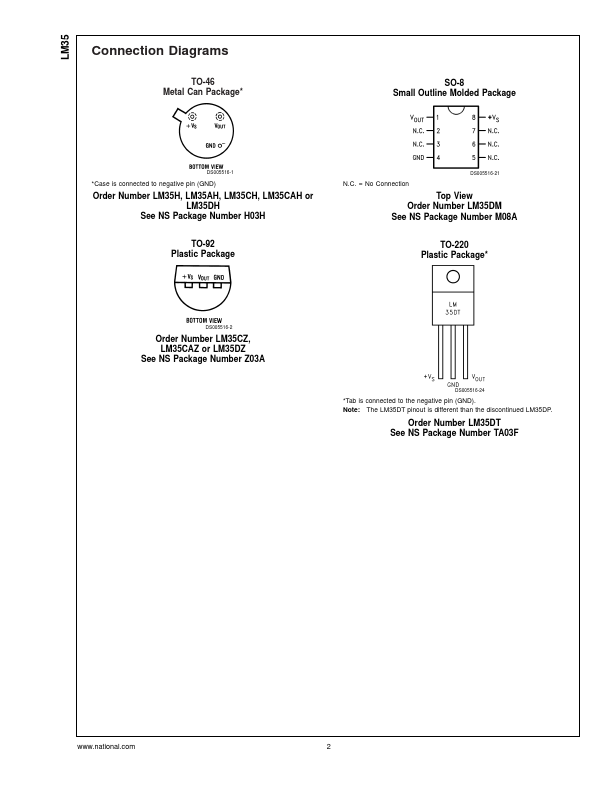

📥 Download Datasheet

LM35A Datasheet Preview — This datasheet PDF includes multiple part numbers: LM35A, LM35. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LM35A, LM35
Manufacturer: National Semiconductor
File Size: 299.49 KB
Datasheet: LM35-NationalSemiconductor.pdf
Description: Precision Centigrade Temperature Sensors
Note: This datasheet PDF includes multiple part numbers: LM35A, LM35.
Please refer to the document for exact specifications by model.

Features

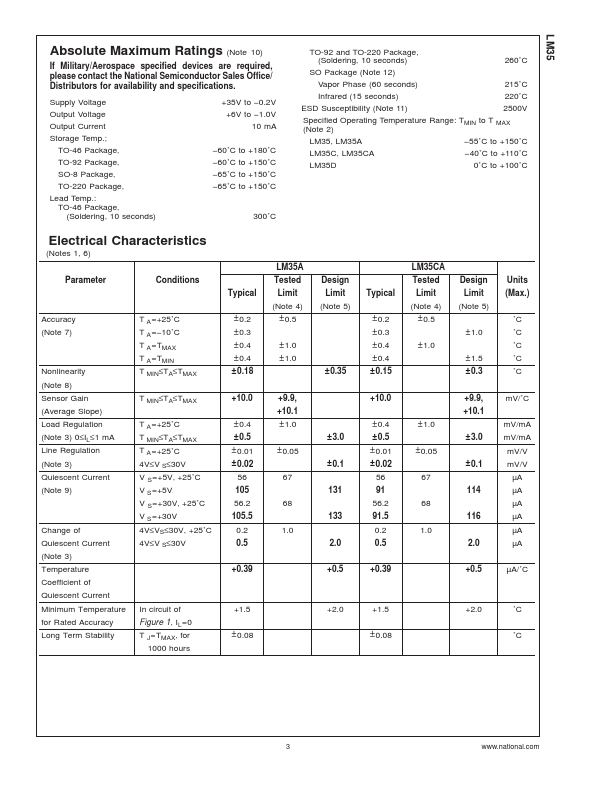

* n Calibrated directly in ˚ Celsius (Centigrade) n Linear + 10.0 mV/˚C scale factor n 0.5˚C accuracy guaranteeable (at +25˚C) n Rated for full

Applications

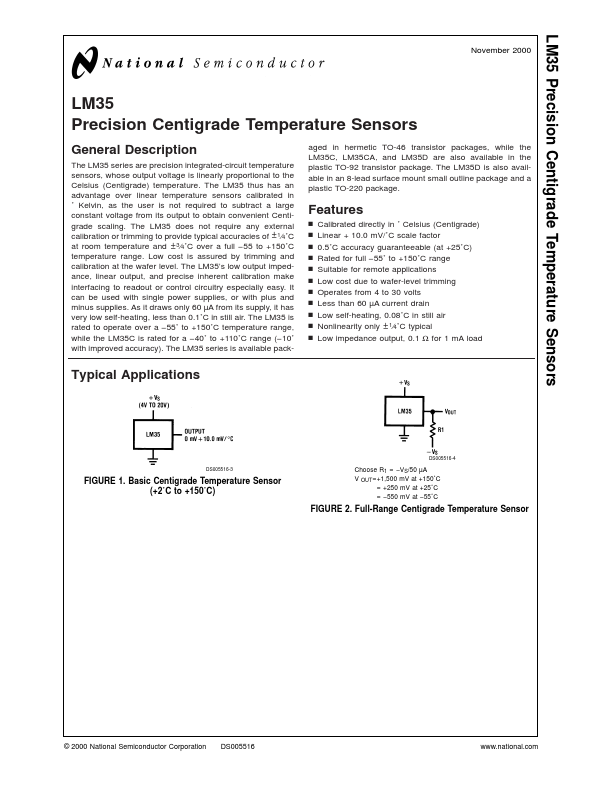

* n Low cost due to wafer-level trimming n Operates from 4 to 30 volts n Less than 60 µA current drain n Low self-heating, 0.08˚C in still air n Nonlinearity only ±1⁄4˚C typical n Low impedance output, 0.1 Ω for 1 mA load Typical Applications DS005516-3 FIGURE 1. Basic Centigrade Temperature Sensor
