LM3814, LM3 Datasheet - National Semiconductor

LM3814 Fast Current Gauge-IC

The LM3814/LM3815 Current Gauges provide easy to use precision current measurement with virtually zero insertion loss (typically 0.004Ω). The LM3814 is used for high-side sensing and the LM3815 is used for low-side sensing. A Delta Sigma analog to digital converter is incorporated to precisely measu.

LM3814 Features

* n No external sense element required n PWM output indicates the current magnitude and direction n PWM output can be interfaced with microprocessors n Precision ∆Σ current-sense technique n Low temperature sensitivity n Internal filtering rejects false trips n Internal Power-On-Reset (POR) Applicati

LM3-814.pdf

This datasheet PDF includes multiple part numbers: LM3814, LM3. Please refer to the document for exact specifications by model.

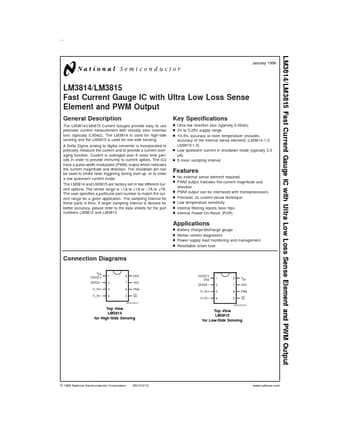

LM3814 Datasheet Preview Page 2 LM3814 Datasheet Preview Page 3

Datasheet Details

Part number:

LM3814, LM3

Manufacturer:

National Semiconductor

File Size:

264.08 KB

Description:

Fast current gauge-ic.

Note:

This datasheet PDF includes multiple part numbers: LM3814, LM3.
Please refer to the document for exact specifications by model.
