LM5032 - High Voltage Dual Interleaved Current Mode Controller

National Semiconductor

📥 Download Datasheet

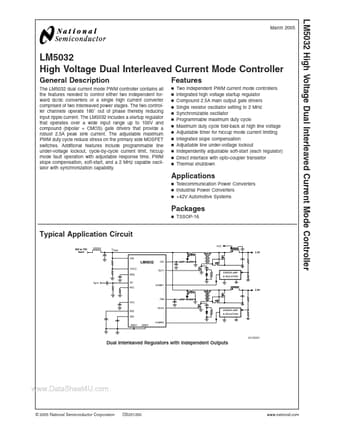

LM5032 Datasheet Preview — Preview of LM5032 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: LM5032
Manufacturer: National Semiconductor
File Size: 0.98 MB
Datasheet: LM5032_NationalSemiconductor.pdf
Description: High Voltage Dual Interleaved Current Mode Controller

LM5032 Product details

Description

The LM5032 dual current mode PWM controller contains all the

Features

needed to control either two independent forward dc/dc converters or a single high current converter comprised of two interleaved power stages. The two controller channels operate 180˚ out of phase thereby reducing input ripple current. The LM5032 includes a startup regulator that operates over a wide input range up to 100V and compound (bipolar + CMOS) gate drivers that provide a robust 2.5A peak sink current. The adjustable maximum PWM duty cycle reduce stress on the primary side.
