LM60 Datasheet PDF - National Semiconductor 2.7V/ SOT-23 or TO-92 Temperature Sensor Specs

LM60 - 2.7V/ SOT-23 or TO-92 Temperature Sensor

Datasheet Summary

Description

The LM60 is a precision integrated-circuit temperature sensor that can sense a

40˚C to +125˚C temperature range while operating from a single +2.7V supply.

The LM60’s output voltage is linearly proportional to Celsius (Centigrade) temperature (+6.25 mV/˚C) and has a DC offset of +424 mV.

Features

n Calibrated linear scale factor of +6.25 mV/˚C n Rated for full.
40˚ to +125˚C range n Suitable for remote.

Datasheet Details

Part number	LM60
Manufacturer	National Semiconductor
File Size	221.58 KB
Description	2.7V/ SOT-23 or TO-92 Temperature Sensor
Datasheet	LM60 Datasheet
Additional preview pages of the LM60 datasheet.

📁 Similar Datasheet

LM60 - SOT-23 or TO-92 Temperature Sensor (Texas Instruments)

LM60-Q1 - SOT-23 Temperature Sensor (Texas Instruments)

LM6020ACA - LCD (TOPWAY)

LM6020ACW - LCD (TOPWAY)

LM6020BCW - LCD (TOPWAY)

LM6020BCW-1 - LCD (TOPWAY)

LM6020BGW - LCD (TOPWAY)

LM6020CCW - LCD (TOPWAY)

LM6020DCW - LCD (TOPWAY)

LM6020FCW - LCD (TOPWAY)

Full PDF Text Transcription

Click to expand full text

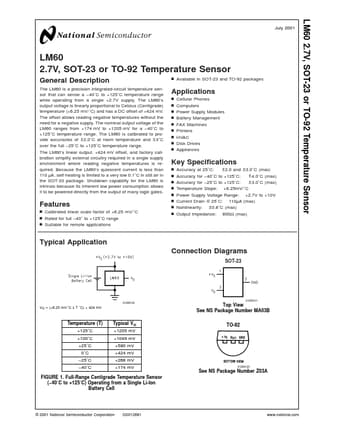

LM60 2.7V, SOT-23 or TO-92 Temperature Sensor July 2001 LM60 2.7V, SOT-23 or TO-92 Temperature Sensor General Description The LM60 is a precision integrated-circuit temperature sensor that can sense a −40˚C to +125˚C temperature range while operating from a single +2.7V supply. The LM60’s output voltage is linearly proportional to Celsius (Centigrade) temperature (+6.25 mV/˚C) and has a DC offset of +424 mV. The offset allows reading negative temperatures without the need for a negative supply. The nominal output voltage of the LM60 ranges from +174 mV to +1205 mV for a −40˚C to +125˚C temperature range. The LM60 is calibrated to provide accuracies of ± 2.0˚C at room temperature and ± 3˚C over the full −25˚C to +125˚C temperature range.

Published: Mar 22, 2005 |
