LM74 - 12-Bit Plus Sign Temperature Sensor

Datasheet Summary

Description

The LM74 is a temperature sensor, Delta-Sigma analog-todigital converter with an SPI and MICROWIRE compatible interface.

The host can query the LM74 at any time to read temperature.

A shutdown mode decreases power consumption to less than 10 μA.

Features

  • 0.0625°C temperature resolution.
  • Shutdown mode conserves power between temperature reading.
  • SPI and.

📥 Download Datasheet

Datasheet preview – LM74

Datasheet Details

Part number LM74
Manufacturer National Semiconductor
File Size 351.83 KB
Description 12-Bit Plus Sign Temperature Sensor
Datasheet download datasheet LM74 Datasheet

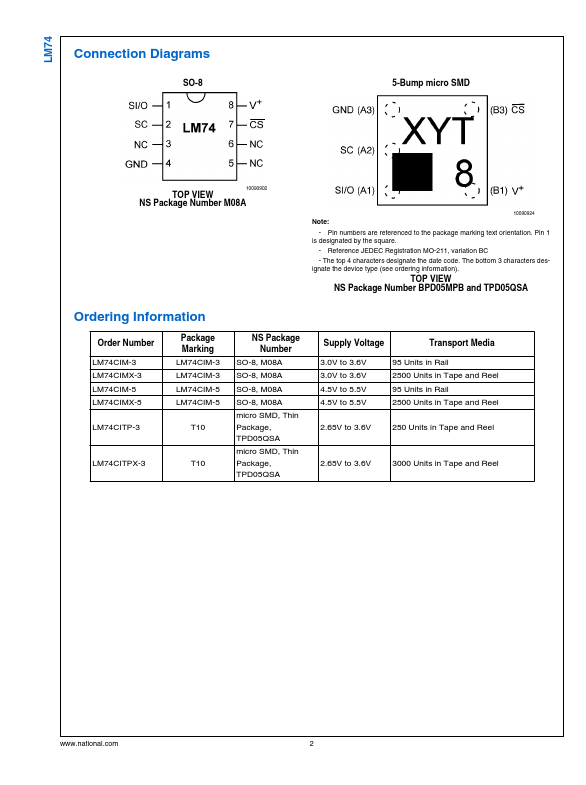

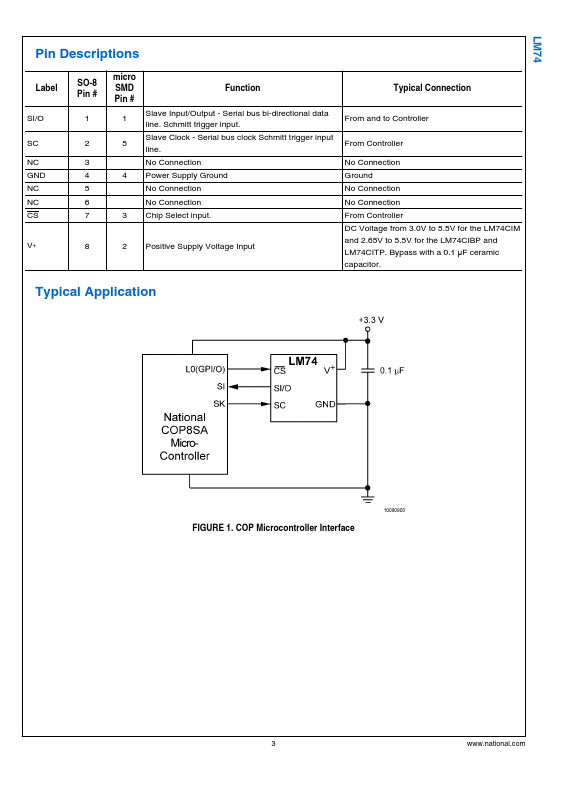

Additional preview pages of the LM74 datasheet.

📁 Similar Datasheet

  • LM74 - SPI/Microwire12-Bit Plus Sign Temperature Sensor (Texas Instruments)
  • LM741 - Single Operational Amplifier (Fairchild Semiconductor)
  • LM741 - 0.9MHz Single and Dual High Gain Operational Amplifiers (Intersil Corporation)
  • LM741 - GENERAL-PURPOSE OPERATIONAL AMPLIFIER (UTC)
  • LM741 - Operational Amplifier (Texas Instruments)
  • LM741-MIL - Operational Amplifier (Texas Instruments)
  • LM741A - Operational Amplifier (Texas Instruments)
  • LM741C - 0.9MHz Single and Dual High Gain Operational Amplifiers (Intersil Corporation)
  • LM741C - Operational Amplifier (Texas Instruments)
  • LM741CH - Operational Amplifier (Texas Instruments)
Other Datasheets by National Semiconductor
  • LM741 - Operational Amplifier
  • LM741A - Operational Amplifier
  • LM741C - Operational Amplifier
  • LM741CH - Operational Amplifier
  • LM741CN - Operational Amplifier
  • LM741H - Operational Amplifier
  • LM741J - Operational Amplifier
  • LM741W - Operational Amplifier

Full PDF Text Transcription

Click to expand full text

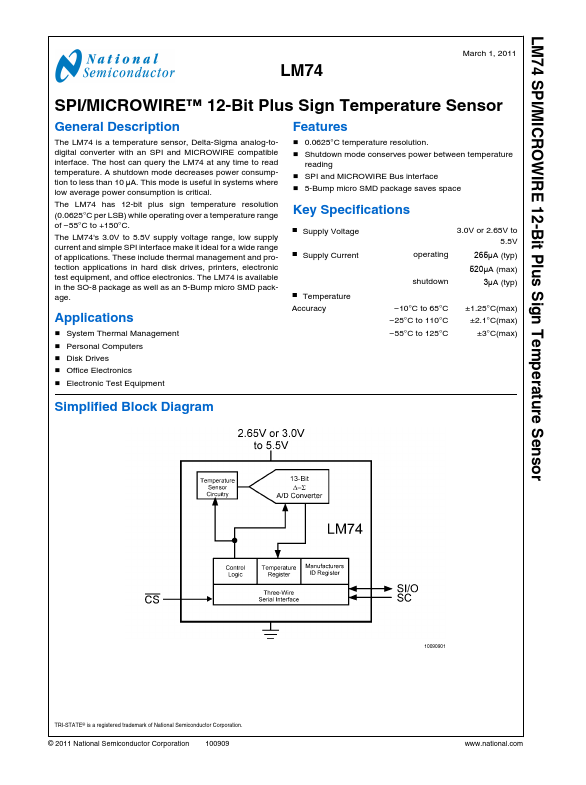

LM74 SPI/MICROWIRE 12-Bit Plus Sign Temperature Sensor LM74 March 1, 2011 SPI/MICROWIRE™ 12-Bit Plus Sign Temperature Sensor General Description The LM74 is a temperature sensor, Delta-Sigma analog-todigital converter with an SPI and MICROWIRE compatible interface. The host can query the LM74 at any time to read temperature. A shutdown mode decreases power consumption to less than 10 μA. This mode is useful in systems where low average power consumption is critical. The LM74 has 12-bit plus sign temperature resolution (0.0625°C per LSB) while operating over a temperature range of −55°C to +150°C. The LM74's 3.0V to 5.5V supply voltage range, low supply current and simple SPI interface make it ideal for a wide range of applications.
