LM78L05 - 3-Terminal Positive Regulators

Datasheet Summary

Description

The LM78LXX series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications.

Features

  • n LM78L05 in micro SMD package n Output voltage tolerances of ±5% over the temperature range n Output current of 100mA n Internal thermal overload protection n Output transistor safe area protection n Internal short circuit current limit n Available in plastic TO-92 and plastic SO-8 low profile packages n No external components n Output voltages of 5.0V, 6.2V, 8.2V, 9.0V, 12V, 15V n See AN-1112 for micro SMD considerations Connection Diagrams SO-8 Plastic (M) (Narrow Body) (TO-92) Plastic Pack.

📥 Download Datasheet

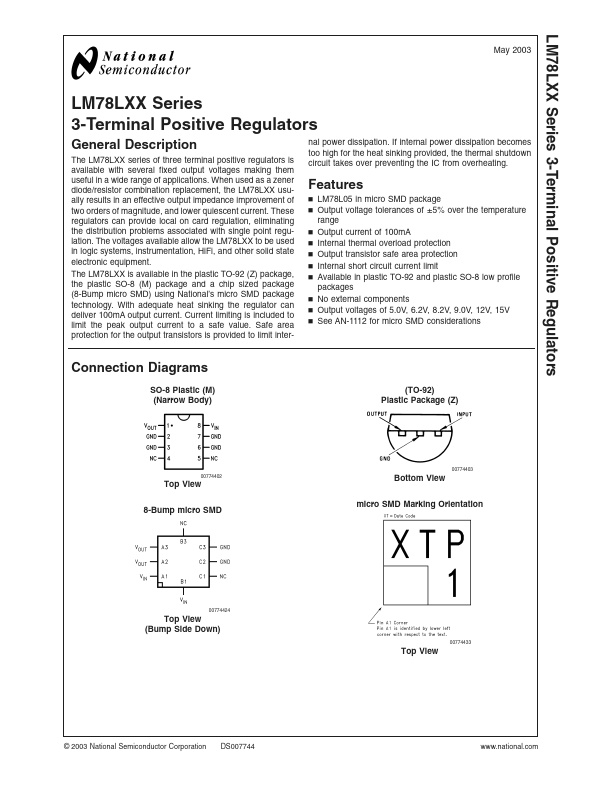

Datasheet preview – LM78L05

Datasheet Details

Part number LM78L05
Manufacturer National Semiconductor
File Size 207.92 KB
Description 3-Terminal Positive Regulators
Datasheet download datasheet LM78L05 Datasheet

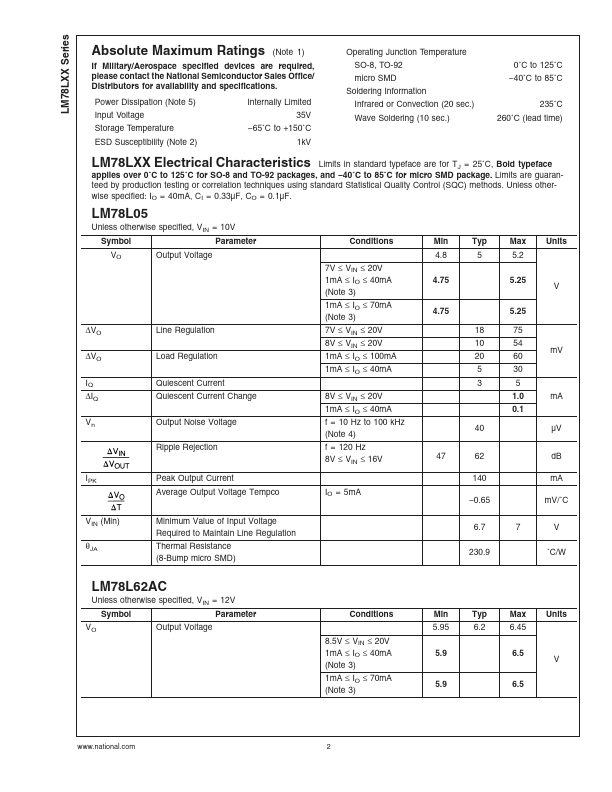

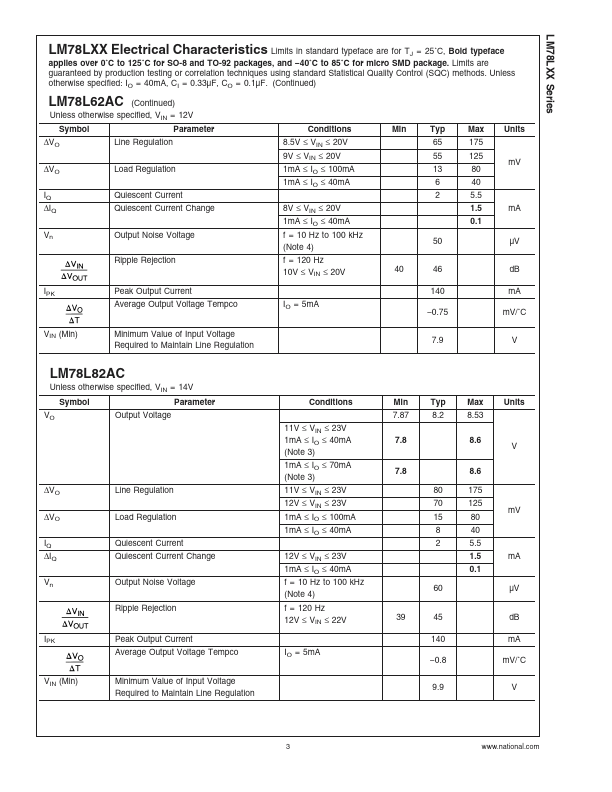

Additional preview pages of the LM78L05 datasheet.

📁 Similar Datasheet

  • LM78L05 - 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS (Boca)
  • LM78L05 - 100-mA Fixed Output Linear Regulator (Texas Instruments)
  • LM78L05 - 3-Terminal 0.1A Positive Voltage Regulator (Fairchild Semiconductor)
  • LM78L05 - Low Current Positive Voltage Regulator (CYStech)
  • LM78L05 - (LM78Lxx) positive voltage regulator (Bay Linear)
  • LM78L05 - 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATOR (HTC Korea)
  • LM78L05 - Three-terminal positive voltage regulator (JinYu)
  • LM78L05 - 3-Terminal 150mA Positive Voltage Regulator (AP Semiconductor)
  • LM78L05A - THREE TERMINAL POSITIVE VOLTAGE REGULATOR (CDIL)
  • LM78L05A - 3-Terminal 0.1A Positive Voltage Regulator (Fairchild Semiconductor)
Other Datasheets by National Semiconductor
  • LM78L00 - 3-Terminal Positive Voltage Regulators
  • LM78L09 - 3-Terminal Positive Regulators
  • LM78L09AC - 3-Terminal Positive Regulators
  • LM78L12 - 3-Terminal Positive Regulators
  • LM78L12AC - 3-Terminal Positive Regulators
  • LM78L15 - 3-Terminal Positive Regulators
  • LM78L15AC - 3-Terminal Positive Regulators
  • LM78L62 - 3-Terminal Positive Regulators

Full PDF Text Transcription

Click to expand full text
LM78LXX Series 3-Terminal Positive Regulators May 2003 LM78LXX Series 3-Terminal Positive Regulators General Description The LM78LXX series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications. When used as a zener diode/resistor combination replacement, the LM78LXX usually results in an effective output impedance improvement of two orders of magnitude, and lower quiescent current. These regulators can provide local on card regulation, eliminating the distribution problems associated with single point regulation. The voltages available allow the LM78LXX to be used in logic systems, instrumentation, HiFi, and other solid state electronic equipment.
