LM7905 - LM79XX Series 3-Terminal Negative Regulators

Product Overview

National Semiconductor

Datasheet Details

Part number	LM7905
Manufacturer	National Semiconductor
File Size	167.73 KB
Description	LM79XX Series 3-Terminal Negative Regulators
Datasheet	LM7905 Datasheet

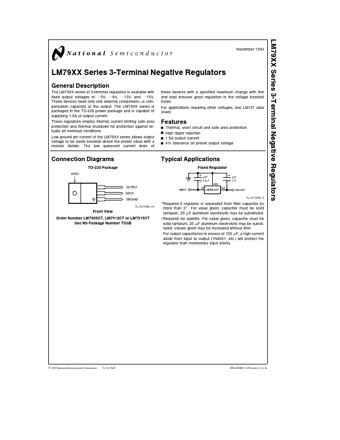

Additional preview pages of the LM7905 datasheet.

Product details

Description

The LM79XX series of 3-terminal regulators is available with fixed output voltages of b5V b8V b12V and b15V These devices need only one external component a compensation capacitor at the output The LM79XX series is packaged in the TO-220 power package and is capable of supplying 1 5A of output current These regulators employ internal current limiting safe area protection and thermal shutdown for protection against virtually all overload conditions Low ground pin current of the LM79XX series allo

Features

Y Y Y Y Thermal short circuit and safe area protection High ripple rejection 1 5A output current 4% tolerance on preset output voltage Connection Diagrams TO-220 Package Typical.
