LM79L05ACM 3-Terminal Negative Regulators

National Semiconductor

Description

LM320L/LM79LXXAC Series 3-Terminal Negative Regulators March 2006 LM320L/LM79LXXAC Series 3-Terminal Negative Regulators General .
The LM320L/LM79LXXAC dual marked series of 3-terminal negative voltage regulators features fixed output voltages of. 5V,. 12V, and.

📥 Download Datasheet

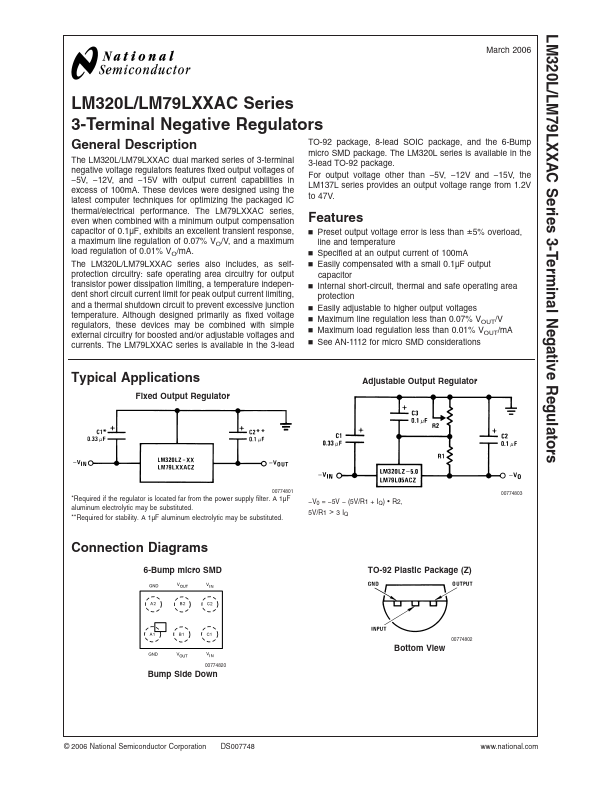

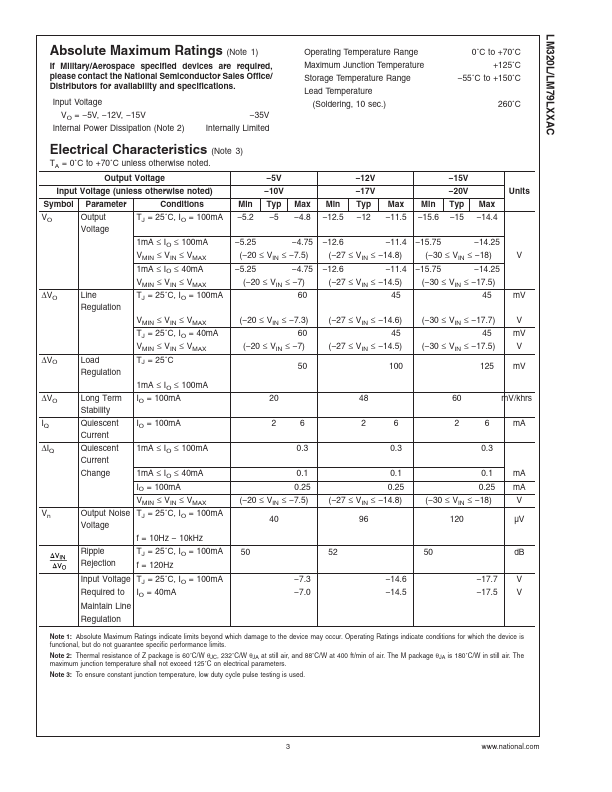

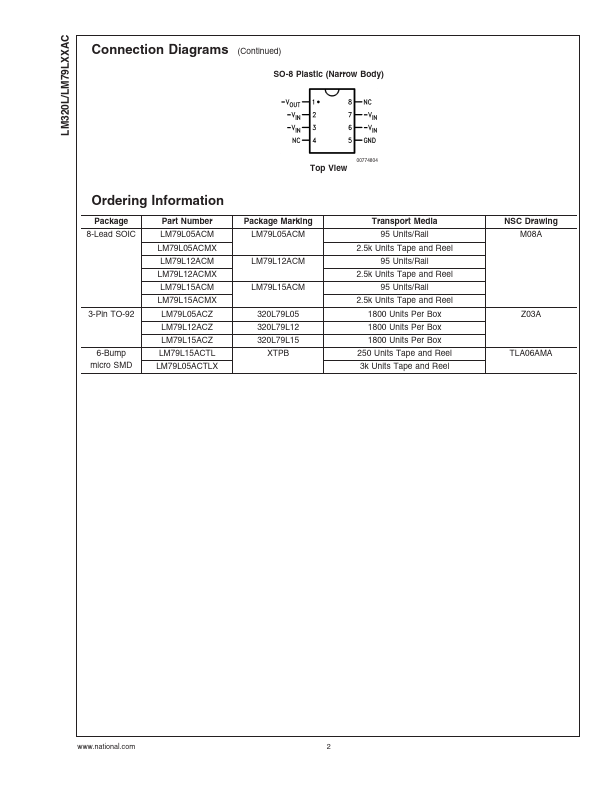

LM79L05ACM Datasheet Preview — Preview of LM79L05ACM PDF

Datasheet Specifications

Part number: LM79L05ACM
Manufacturer: National Semiconductor
File Size: 589.71 KB
Datasheet: LM79L05ACM-NationalSemiconductor.pdf
Description: 3-Terminal Negative Regulators

Features

* fixed output voltages of
* 5V,
* 12V, and
* 15V with output current capabilities in excess of 100mA. These devices were designed using the latest computer techniques for optimizing the packaged IC thermal/electrical performance. The LM79LXXAC series, even when combined with a mi

Applications

* Fixed Output Regulator Adjustable Output Regulator 00774801
* Required if the regulator is located far from the power supply filter. A 1µF aluminum electrolytic may be substituted.
* Required for stability. A 1µF aluminum electrolytic may be substituted.
* V0 =
* 5V
