LMF60

LMF60 High Performance 6th-Order Switched Capacitor Butterworth Lowpass Filter

LMF60 Features

* Y Y Y Y Y Y Y Y Y Y Y Cutoff frequency range of 0 1 Hz to 30 kHz Cutoff frequency accuracy of g 1 0% maximum Low offset voltage g 100 mV maximum g 5V supply Low clock feedthrough of 10 mVp

* p typical Dynamic range of 88 dB typical Two uncommitted op amps available No external components re

LMF60 General Description

The LMF60 is a high performance precision 6th-order Butterworth lowpass active filter It is fabricated using National’s LMCMOS process an improved silicon-gate CMOS process specifically designed for analog products Switchedcapacitor techniques eliminate external component requirements and allow a cl.

LMF60 Datasheet (391.44 KB)

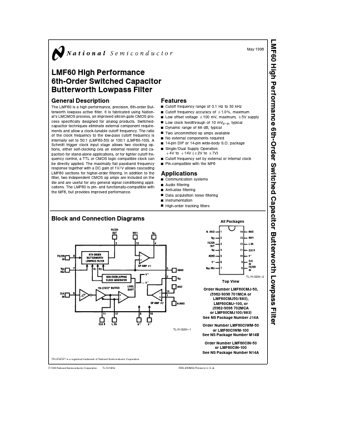

Preview of LMF60 PDF

Datasheet Details

Part number:

LMF60

Manufacturer:

National Semiconductor

File Size:

391.44 KB

Description:

Lmf60 high performance 6th-order switched capacitor butterworth lowpass filter.
LMF60 High Performance 6th-Order Switched Capacitor Butterworth Lowpass Filter May 1996 LMF60 High Performance 6th-Order Switched Capacitor Butterwo.
