LMX2525 Datasheet - National Semiconductor

LMX2525 Dual Frequency Synthesizer System

LMX2525 is a highly integrated, high performance, low power frequency synthesizer system optimized for dualband Japan PDC mobile handsets. Using a proprietary digital phase locked loop technique, LMX2525 generates very stable, low noise local oscillator signals for up and down conversion in wireless.

LMX2525 Features

* low current consumption: 10 mA at 2.8 V when operating in the PDC800 mode. LMX2525 is available in a 24-pin leadless leadframe package (LLP). Features n Small Size 5.0 mm X 4.0 mm X 0.75 mm 24-Pin LLP Package n RF Synthesizer System Two Integrated VCOs Integrated Loop Filter Low Spurious, Low Phase

LMX2525 Datasheet (211.12 KB)

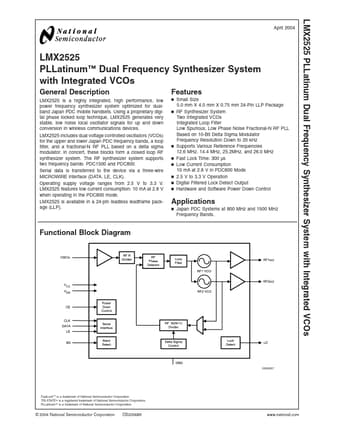

Preview of LMX2525 PDF

Datasheet Details

Part number:

LMX2525

Manufacturer:

National Semiconductor

File Size:

211.12 KB

Description:

Dual frequency synthesizer system.
