MF5

Universal Monolithic Switched Capacitor Filter

National Semiconductor

MF5 Features

* II Low cost III 14-pin DIP or 14-pin Surface Mount (SO) wide-body package II Easy to use II Clock to center frequency ratio accuracy ± 0.6% II Filter cutoff frequency stability directly dependent on external clock quality II Low sensitivity to external component variations II Separate highpass (or n

MF5 General Description

The MF5 consists of an extremely easy to use, general purpose CMOS active filter building block and an uncommitted op amp. The filter building block, together with an external clock and a few resistors, can produce various second order functions. The filter building block has 3 output pins. One of t.

MF5 Datasheet (913.67 KB)

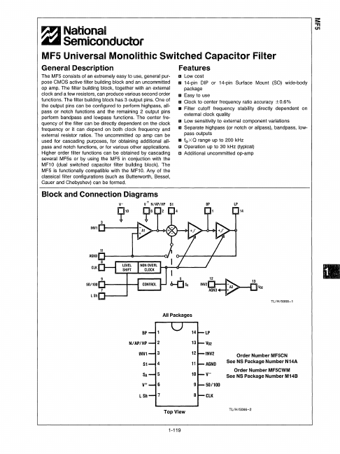

MF5 Datasheet Preview — Preview of MF5 PDF

Datasheet Details

Part number:

MF5

Manufacturer:

National Semiconductor

File Size:

913.67 KB

Description:

Universal monolithic switched capacitor filter.
