MXF10A Datasheet - National Semiconductor

1W Monaural / 85mW Stereo Headphone Audio Amplifier

MXF10A Features

* circuitry that suppresses output transients ("clicks and pops"). The LM4914 is designed for notebook and other handheld portable applications. It delivers high quality output power from a surface-mount package and requires few external components. The LM4914 is pin and functionally compatible with t

MXF10A General Description

The unity-gain stable LM4914 is both a mono differential output (for bridge-tied loads, or BTL) audio power amplifier and a single-ended (SE) stereo headphone amplifier. Operating on a single 5V supply, the mono BTL mode delivers 1W into an 8Ω load. In SE stereo mode, the amplifier delivers 85mW to .

MXF10A Datasheet (384.97 KB)

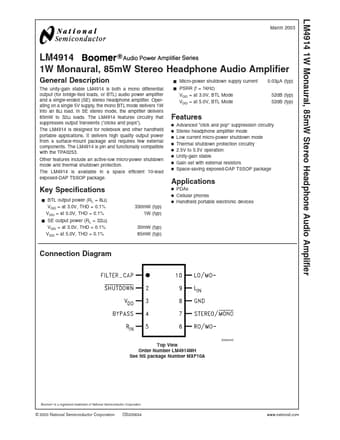

MXF10A Datasheet Preview — Preview of MXF10A PDF

Datasheet Details

Part number:

MXF10A

Manufacturer:

National Semiconductor

File Size:

384.97 KB

Description:

1w monaural / 85mw stereo headphone audio amplifier.
