NPD5566, NPD5564 Datasheet - National Semiconductor

NPD5566 N-Channel Monolithic Dual JFET

The 2N/NPD5564 thru 2N/NPD5566 series of N-channel monolithic dual JFETs is designed for broadband low noise differential amplifier or applications requiring dual matched moderate ON resistance analog switches. Absolute Maximum Ratings (25°o Gate-to-Gate Voltage ±40V Gate-Drain or Gate-Source V.

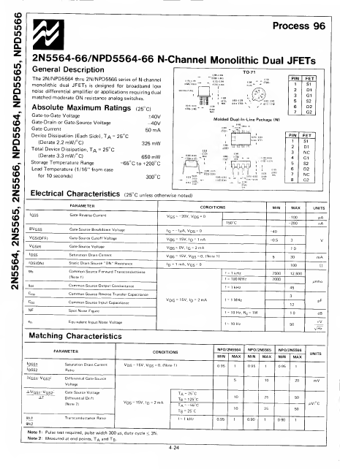

NPD5564-NationalSemiconductor.pdf

NPD5566 Datasheet Preview — This datasheet PDF includes multiple part numbers: NPD5566, NPD5564. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NPD5566, NPD5564

Manufacturer:

National Semiconductor

File Size:

32.87 KB

Description:

N-channel monolithic dual jfet.

Note:

This datasheet PDF includes multiple part numbers: NPD5566, NPD5564.
Please refer to the document for exact specifications by model.
