NS32FX200-25

System Controller

NS32FX200-25 Features

* are explicitly indicated The NS32FX200 NS32FV100 and NS32FX100 feature an interface to devices like stepper motors printers and scanners a Sigma-Delta CODEC an elapsed-time counter a DMA controller an interrupt controller and a UART The NS32FX200 is optimized for high-end FAX applications such as pl

NS32FX200-25 General Description

The NS32FX200 NS32FV100 and NS32FX100 are highly integrated system chips designed for a FAX system based on National Semiconductor’s embedded processors NS32FX161 NS32FV16 or NS32FX164 The NS32FX100 is the common core for all three system chips The NS32FV100 and NS32FX200 offer additional functions .

NS32FX200-25 Datasheet (955.81 KB)

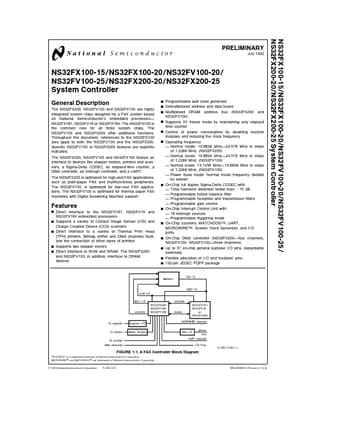

Preview of NS32FX200-25 PDF

Datasheet Details

Part number:

NS32FX200-25

Manufacturer:

National Semiconductor

File Size:

955.81 KB

Description:

System controller.
NS32FX100-15 NS32FX100-20 NS32FV100-20 NS32FV100-25 NS32FX200-20 NS32FX200-25 System Controller PRELIMINARY July 1992 NS32FX100-15 NS32FX100-20 NS32.
