QR0001

QuickRing Data Stream Controller

QR0001 Datasheet (409.96 KB)

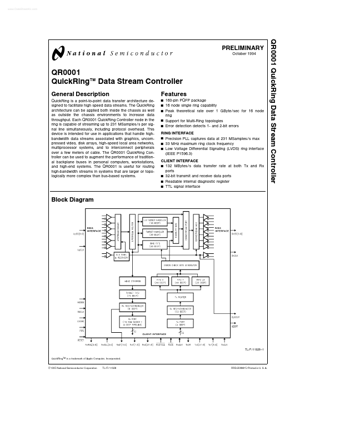

Preview of QR0001 PDF

Datasheet Details

Part number:

QR0001

Manufacturer:

National Semiconductor

File Size:

409.96 KB

Description:

Quickring data stream controller.

QR0001 Features

* Y Y Y Y Y 160-pin PQFP package 16 node single ring capability Peak theoretical rate over 1 GByte sec for 16 node ring Support for Multi-Ring topologies Error detection detects 1- and 2-bit errors RING INTERFACE Y Precision PLL captures data at 231 MSamples s max Y 33 MHz maximum ring clock freque

QR0001 General Description

QuickRing is a point-to-point data transfer architecture designed to facilitate high speed data streams The QuickRing architecture can be applied both inside the chassis as well as outside the chassis environments to increase data throughput Each QR0001 QuickRing Controller node in the ring is capab.
