DS1651 - Quad High Speed MOS Sense Amplifiers

Datasheet Summary

Description

The DS1651/DS3651 is TTL compatible high speed circuits intended for sensing in a broad range of MOS memory system applications.

Features

n n n n n n High speed TTL compatible Input sensitivity.
± 7 mV TRI-STATE outputs for high speed buses Standard supply voltages.
± 5V Pin and function compatible with MC3430 Connection Diagram Dual-in-Line Package Truth Table Input VID ≥ 7 mW TA = 0˚C to +70˚C.
7 mV ≤ VID ≤ +7 mV TA = 0˚C to +70˚C VID ≤.
7 mV TA = 0˚C to +70˚C L = Low logic state H = High logic state Open = TRI-STATE X = Indeterminate state Strobe L H L H L H Output DS3651 H Open X Open L Op.

Datasheet Details

Part number	DS1651
Manufacturer	National
File Size	245.76 KB
Description	Quad High Speed MOS Sense Amplifiers
Datasheet	DS1651 Datasheet

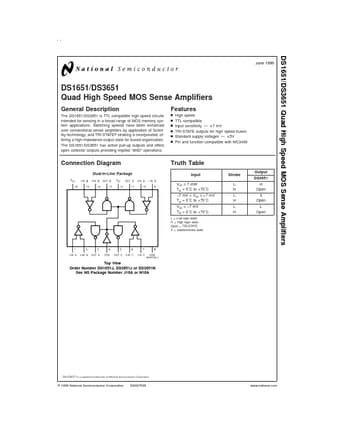

Additional preview pages of the DS1651 datasheet.

📁 Similar Datasheet

DS1650 - Partitionable 4096K NV SRAM (Dallas)

DS160-40THD02 - SCHOTTKY BARRIER DIODE (JCET)

DS1602 - Elapsed Time Counter (Maxim Integrated)

DS1603 - Elapsed Time Counter (Maxim Integrated)

DS1608 - EconoRAM Time Chip (Dallas Semiconductor)

DS1608B-104MLB - Backlight Inductirs (Coilcraft)

DS1608B-104MLC - Backlight Inductirs (Coilcraft)

DS1608B-104MLD - Backlight Inductirs (Coilcraft)

DS1608B-105MLB - Backlight Inductirs (Coilcraft)

DS1608B-105MLC - Backlight Inductirs (Coilcraft)

Full PDF Text Transcription

Click to expand full text

DS1651/DS3651 Quad High Speed MOS Sense Amplifiers June 1999 DS1651/DS3651 Quad High Speed MOS Sense Amplifiers General Description The DS1651/DS3651 is TTL compatible high speed circuits intended for sensing in a broad range of MOS memory system applications. Switching speeds have been enhanced over conventional sense amplifiers by application of Schottky technology, and TRI-STATE ® strobing is incorporated, offering a high impedance output state for bused organization. The DS1651/DS3651 has active pull-up outputs and offers open collector outputs providing implied “AND” operations.
