NS486SXL

Optimized 32-Bit 486-Class Controller

NS486SXL Features

* n 100% compatible with VxWorks™, VRTX™, QNX™ Neutrino, pSOS + ® , and other popular real-time executives and operating system kernels n Intel486 instruction set compatible (protected mode only) with optimized performance n Operation at 25 MHz with 5V supply n Low cost 132-pin PQFP package n Industry

NS486SXL General Description

The NS486SXL is a highly integrated embedded system controller incorporating an Intel486™-class 32-bit processor along with all of the necessary System Service Elements, implementing a true “system on a chip.” It is ideally suited for a wide variety of applications running in a segmented protect-mod.

NS486SXL Datasheet (466.81 KB)

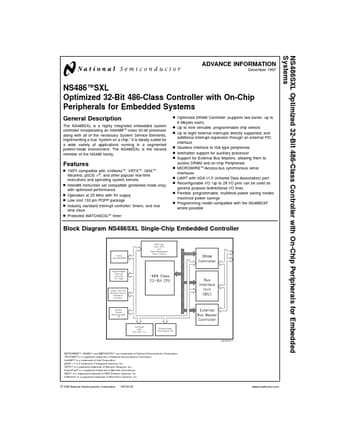

Preview of NS486SXL PDF

Datasheet Details

Part number:

NS486SXL

Manufacturer:

National

File Size:

466.81 KB

Description:

Optimized 32-bit 486-class controller.
NS486SXL Optimized 32-Bit 486-Class Controller with On-Chip Peripherals for Embedded Systems ADVANCE INFORMATION December 1997 NS486™SXL Optimized 3.
