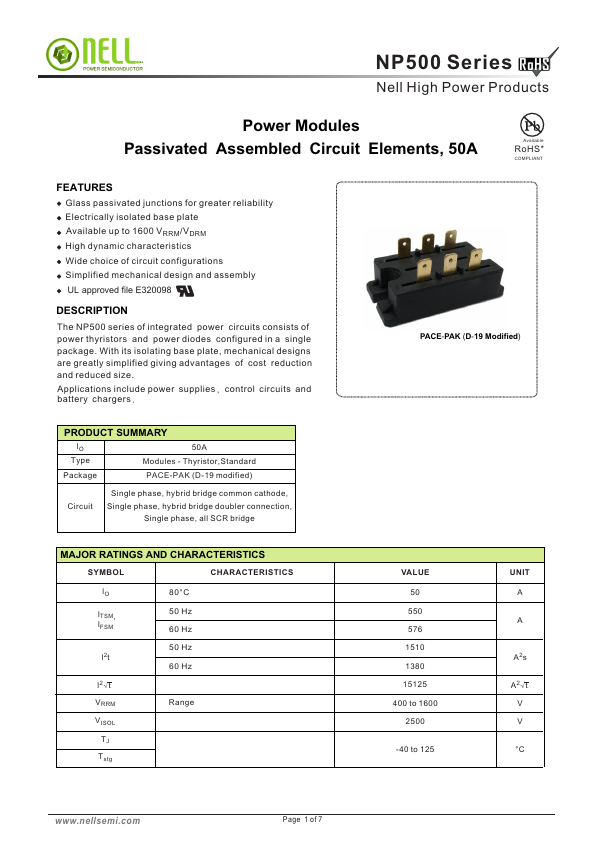

NP505
FEATURES
Glass passivated junctions for greater reliability Electrically isolated base plate Available up to 1600 VRRM/VDRM High dynamic characteristics Wide choice of circuit configurations Simplified mechanical design and assembly UL approved file E320098
DESCRIPTION
The NP500 series of integrated power circuits consists of power thyristors and power diodes configured in a single package. With its isolating base plate, mechanical designs are greatly simplified giving advantages of cost reduction and reduced size. Applications include power supplies, control circuits and battery chargers.
PACE-PAK (D-19 Modified)
PRODUCT SUMMARY l O
50A
Type
Modules
- Thyristor,Standard
Package
PACE-PAK (D-19 modified)
Circuit
Single phase, hybrid bridge mon cathode, Single phase, hybrid bridge doubler connection,
Single phase, all SCR bridge

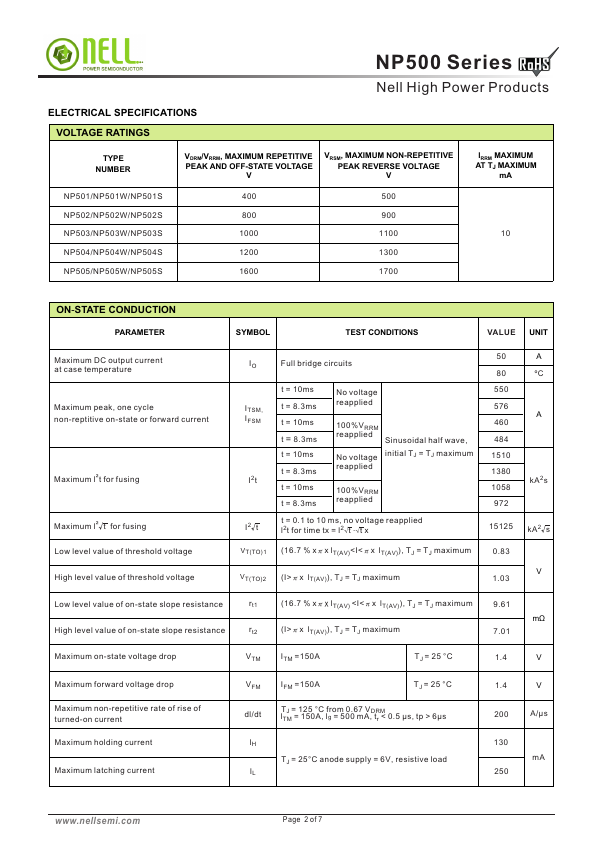

MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
CHARACTERISTICS l O
80°C l TSM, l FSM
50 Hz 60 Hz l2t l2√t VRRM VISOL
TJ Tstg
50 Hz 60 Hz
Range
VALUE 50...
