NJM2072 SIGNAL LEVEL SENSOR SYSTEM * GENERAL .
The NJM2072 is a monolithic integrated circuit designed for signal level sensor system.

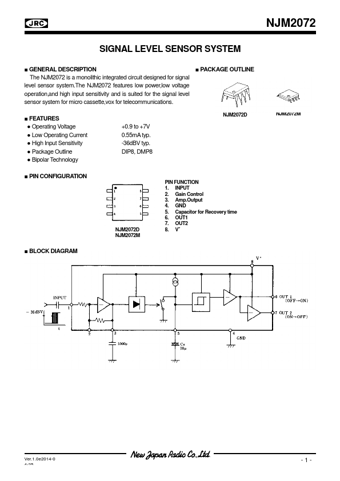

datasheet Preview Page 1 from Datasheet4u.com

2072D_NewJapanRadio.pdf

2072D Datasheet Preview — Preview of 2072D PDF

Datasheet Details

Part number:

2072D

Manufacturer:

New Japan Radio

File Size:

100.29 KB

Description:

NJM2072D

Features

* low power,low voltage operation,and high input sensitivity and is suited for the signal level sensor system for micro cassette,vox for telecommunications.
* PACKAGE OUTLINE
* FEATURES
* Operating Voltage
* Low Operating Current
* High Input Sensitivity
* Package Outline

Applications

* NJM2072 Pins 6 and 7 show an open collector. Mount resistor RP shown by the following equation. RP=(V+MIN-0.2)/0.3 (kΩ) Resistor RP to pin 7 is omissible,if pin 6 only is used. But resister RP to pin 6 should be put when Out2 only is used. V+MIN is minimum supply voltage. [CAUTION] The specificatio
