2114D Datasheet - New Japan Radio

2114D NJM2114D

NJM2114 is a high performance dual low noise operational amplifier that could be replaced in application with NJM5532.Comparing to NJM5532; it has superior specifications on Slew Rate, Bandwidth and Offset Voltage. Furthermore lower noise and distortion are achieved, it is applicable for Hi-Fi audio.

2114D Features

* Operating Voltage

* High Slew Rate

* Wide Unity Gain Bandwidth

* Low Noise Voltage

* High Output Current

* Package Outline

* Bipolar Technology ( ±3.0V~±22.0V ) ( 15V/µs typ. ) ( 13MHz typ.) ( 0.9µVrms typ. ) ( 60mA typ. ) DIP8,DMP8,SIP8

* PACKAGE OUTLINE NJM2114D

2114D_NewJapanRadio.pdf

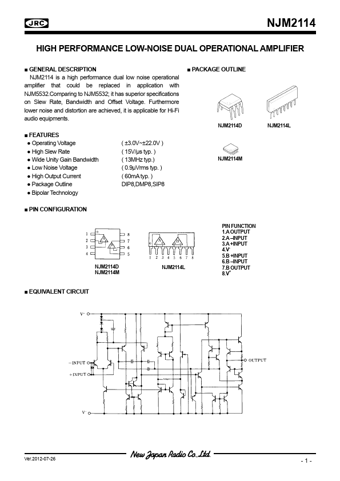

2114D Datasheet Preview — Preview of 2114D PDF

Datasheet Details

Part number:

2114D

Manufacturer:

New Japan Radio

File Size:

198.15 KB

Description:

Njm2114d.
