NJL73H360A, NJL71H000A, (NJL7xx000A) INFRARED REMOTE CONTROL RECEIVER

www.DataSheet4U.com NJL71H/71V/72H/73H/74H000A INFRARED REMOTE CONTROL RECEIVER s GENERAL .
The NJL70H/V000A series are small and high performance receiving devices for infrared remote control system.

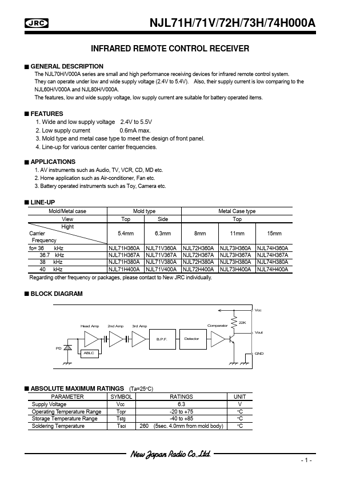

 datasheet Preview Page 1 from Datasheet4u.com

NJL71H000A_NewJapanRadio.pdf

This datasheet PDF includes multiple part numbers: NJL73H360A, NJL71H000A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NJL73H360A, NJL71H000A

Manufacturer:

New Japan Radio

File Size:

150.70 KB

Description:

(NJL7xx000A) INFRARED REMOTE CONTROL RECEIVER

Note:

This datasheet PDF includes multiple part numbers: NJL73H360A, NJL71H000A.
Please refer to the document for exact specifications by model.

Features

* low and wide supply voltage, low supply current are suitable for battery operated items. s FEATURES 1. Wide and low supply voltage 2.4V to 5.5V 2. Low supply current 0.6mA max. 3. Mold type and metal case type to meet the design of front panel. 4. Line-up for various center carrier frequencies. s

Applications

* 1. AV instruments such as Audio, TV, VCR, CD, MD etc. 2. Home application such as Air-conditioner, Fan etc. 3. Battery operated instruments such as Toy, Camera etc. s LINE-UP Mold/Metal case View Hight Mold type Top Side Metal Case type Top 11mm NJL73H360A NJL73H367A NJL73H380A NJL73H400A 15mm NJL7
