NJM062 - J-FET INPUT OPERATIONAL AMPLIFIER

Product Overview

New Japan Radio

Datasheet Details

Part number	NJM062
Manufacturer	New Japan Radio
File Size	213.59 KB
Description	J-FET INPUT OPERATIONAL AMPLIFIER
Datasheet	NJM062 Datasheet
Note	This datasheet PDF includes multiple part numbers: NJM062, NJM062NewJapanRadio. Please refer to the document for exact specifications by model.

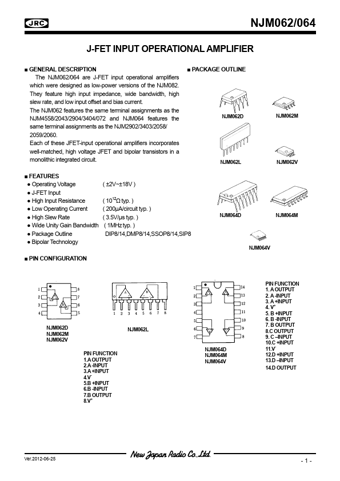

Additional preview pages of the NJM062 datasheet.

Product details

Description

The NJM062/064 are J-FET input operational amplifiers which were designed as low-power versions of the NJM082. They feature high input impedance, wide bandwidth, high slew rate, and low input offset and bias current.The NJM062

Features

S.
Operating Voltage ( ±2V~±18V ).
J-FET Input.
High Input Resistance ( 1012Ω typ. ).
Low Operating Current ( 200µA/circuit typ. ).
High Slew Rate ( 3.5V/µs typ. ).
Wide Unity Gain Bandwidth ( 1MHz typ. ).
Package Outline DIP8/14,DMP8/14,SSOP8/14,SIP8.
Bipolar Technology.
PI.
