NJM13600D, NJM13600 Datasheet - New Japan Radio

NJM13600D DUAL OPERATIONAL TRANSCONDUCTANCE AMPLIFIER

The NJM13600/13700 consist of two current controlled trans conductance amplifiers each with differential inputs and a push pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher in.

NJM13600D Features

* Package Outline

* Bipolar Technology DIP16,DMP16

* PIN CONFIGURATION NJM13600M NJM13700M PIN FUNCTION 1. AMP BIAS INPUT A 2. DIODE BIAS A 3. +INPUT 4.

* INPUT 5. OUTPUT A 6. V7. BUFFER INPUT A 8. BUFFER OUTPUT A 9. BUFFER OUTPUT B 10. BUFFER INPUT B 11. V+ 12. OUTPUT B 13.

NJM13600_NewJapanRadio.pdf

This datasheet PDF includes multiple part numbers: NJM13600D, NJM13600. Please refer to the document for exact specifications by model.

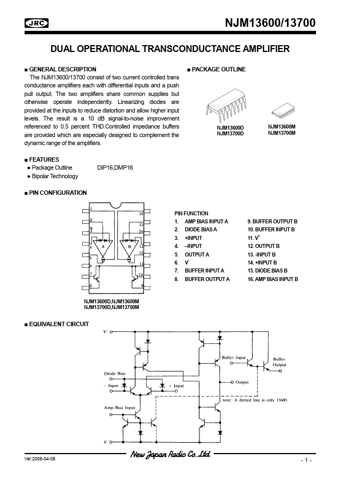

NJM13600D Datasheet Preview Page 2 NJM13600D Datasheet Preview Page 3

Datasheet Details

Part number:

NJM13600D, NJM13600

Manufacturer:

New Japan Radio

File Size:

242.22 KB

Description:

Dual operational transconductance amplifier.

Note:

This datasheet PDF includes multiple part numbers: NJM13600D, NJM13600.
Please refer to the document for exact specifications by model.
