NJM2193 FOCUS & SRS AUDIO PROCESSOR

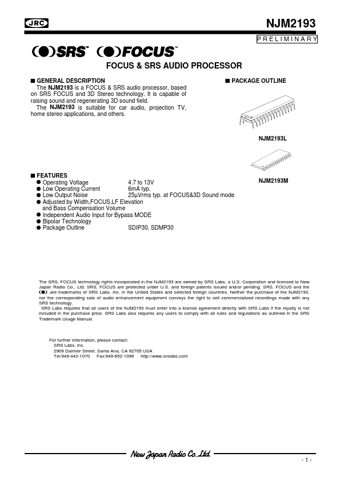

📥 Download Datasheet Datasheet Preview Page 1

Description

NJM2193 PRELIMINARY FOCUS & SRS AUDIO PROCESSOR s GENERAL .
The NJM2193 is a FOCUS & SRS audio processor, based on SRS FOCUS and 3D Stereo technology.

📥 Download Datasheet

Preview of NJM2193 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NJM2193
Manufacturer
New Japan Radio
File Size
67.46 KB
Datasheet
NJM2193_NewJapanRadio.pdf
Description
FOCUS & SRS AUDIO PROCESSOR

Features

* q Operating Voltage 4.7 to 13V q Low Operating Current 6mA typ. q Low Output Noise 25µVrms typ. at FOCUS&3D Sound mode q Adjusted by Width,FOCUS,LF Elevation and Bass Compensation Volume q Independent Audio Input for Bypass MODE q Bipolar Technology q Package Outline SDIP30, SDMP30 NJM2193M The SR
