NJM3777E3 Datasheet - New Japan Radio

DUAL STEPPER MOTOR DRIVER

NJM3777E3 Features

* Dual chopper driver

* 900 mA continuous output current per channel

* Digital filter on chip eliminates external filtering components

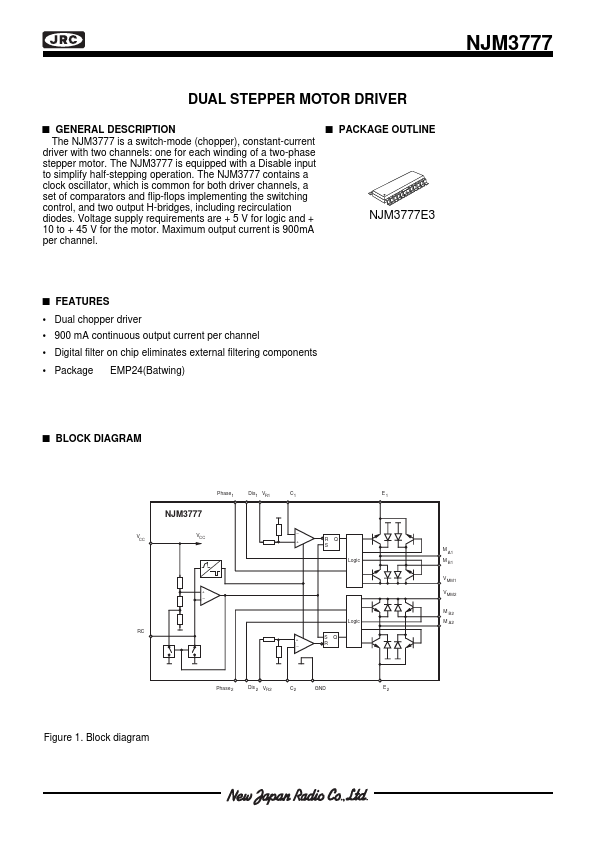

* Package EMP24(Batwing) s BLOCK DIAGRAM Phase1 Dis1 VR1 C1 NJM3777 VCC VCC

* + E1 RQ S Logic +

* RC Logic

NJM3777E3 General Description

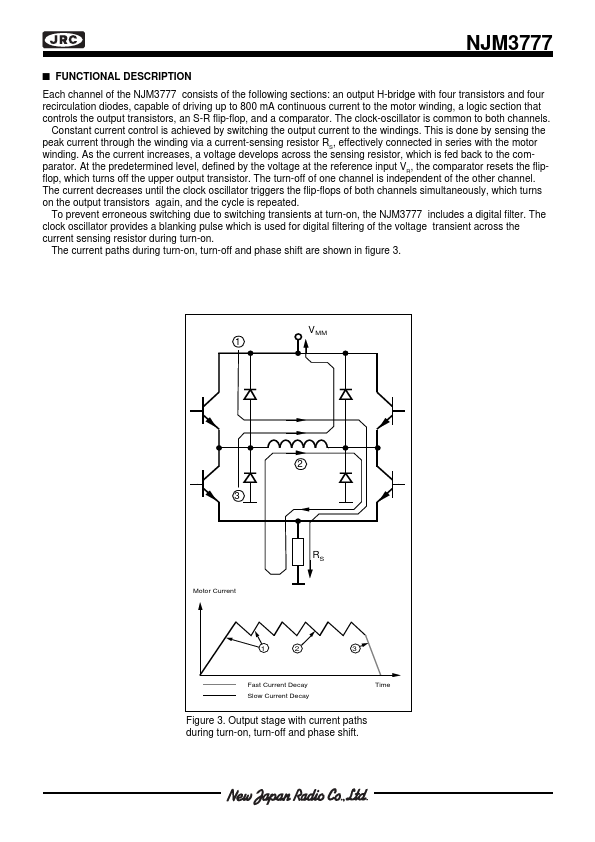

The NJM3777 is a switch-mode (chopper), constant-current driver with two channels: one for each winding of a two-phase stepper motor. The NJM3777 is equipped with a Disable input to simplify half-stepping operation. The NJM3777 contains a clock oscillator, which is common for both driver channels, a.

NJM3777E3 Datasheet (166.56 KB)

NJM3777E3 Datasheet Preview — Preview of NJM3777E3 PDF

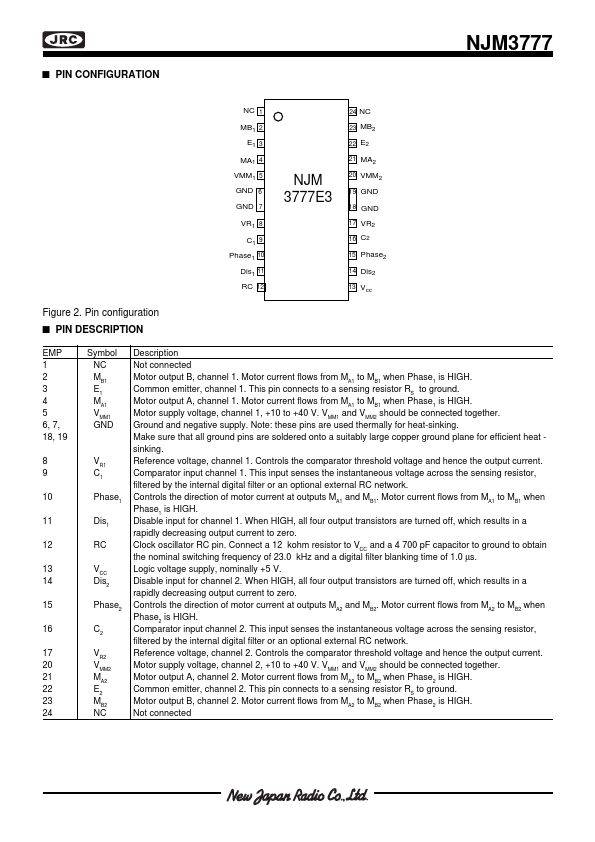

Datasheet Details

Part number:

NJM3777E3

Manufacturer:

New Japan Radio

File Size:

166.56 KB

Description:

Dual stepper motor driver.
