NMH4809S

Isolated 2W Dual Output DC-DC Converters

NMH4809S Features

* p Wide Temperature performance at full 2 Watt load,

* 40°C to 85°C p Dual Output from a Single Input Rail p Industry Standard Pinout p Power Sharing on Output p 1kVDC Isolation p Efficiency to 86% p Power Density up to 1.44W/cm! p 5V, 12V, 24V & 48V Input p 5V, 9V,12V and 15V Output p Footpri

NMH4809S General Description

The NMH series of industrial temperature range DC-DC converters are the standard building blocks for on-board point-of-use power systems. They are ideally suited for providing dual rail supplies on single rail boards with the added benefit of galvanic isolation to reduce circuit noise. All of the ra.

NMH4809S Datasheet (421.46 KB)

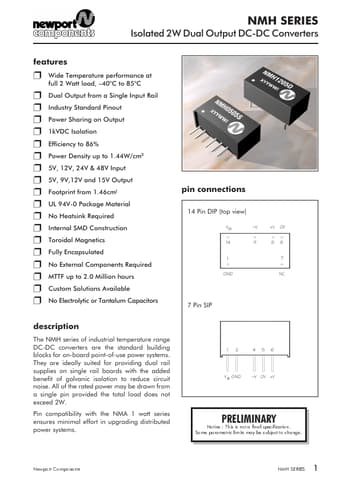

Preview of NMH4809S PDF

Datasheet Details

Part number:

NMH4809S

Manufacturer:

Newport Components

File Size:

421.46 KB

Description:

Isolated 2w dual output dc-dc converters.
