NMH4815S

Isolated 2W Dual Output DC-DC Converters

Newport Components

NMH4815S Features

* p Wide Temperature performance at full 2 Watt load,

* 40°C to 85°C p Dual Output from a Single Input Rail p Industry Standard Pinout p Power Sharing on Output p 1kVDC Isolation p Efficiency to 86% p Power Density up to 1.44W/cm! p 5V, 12V, 24V & 48V Input p 5V, 9V,12V and 15V Output p Footpri

NMH4815S General Description

The NMH series of industrial temperature range DC-DC converters are the standard building blocks for on-board point-of-use power systems. They are ideally suited for providing dual rail supplies on single rail boards with the added benefit of galvanic isolation to reduce circuit noise. All of the ra.

NMH4815S Datasheet (421.46 KB)

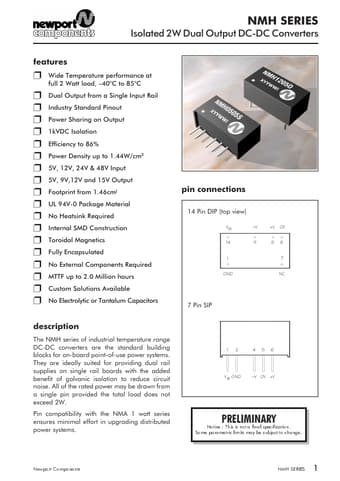

NMH4815S Datasheet Preview — Preview of NMH4815S PDF

Datasheet Details

Part number:

NMH4815S

Manufacturer:

Newport Components

File Size:

421.46 KB

Description:

Isolated 2w dual output dc-dc converters.
