NVP2090 - CCD Camera Image Signal Processor

Description

Features

a 25 MHz single-channel architecture designed to sample the outputs of CCD arrays. The signal chain consists of a digitally controlled variable gain amplifier(VGA), and a black level clamp. It offers 10-bit ADC resolution. ) device that it is possible to design compact size of cameras. Even there are two main functions with AE and AWB functions. AE function indicates to stabilize output image brightness and AWB function which automatically adjust white balance even if the input images with differ.

Nextchip

📥 Download Datasheet

Datasheet Details

Part number	NVP2090
Manufacturer	Nextchip
File Size	204.74 KB
Description	CCD Camera Image Signal Processor
Datasheet	NVP2090 Datasheet
Additional preview pages of the NVP2090 datasheet.

📁 Similar Datasheet

NVP3000 - ASIC Solution for 1-channel DVR application using HDD (ETC)

Other Datasheets by Nextchip

NVP2010 - CCD Image Signal Processor
NVP2020 - CCD Image Signal Processor
NVP2040 - CCD Camera Image Signal Processor
NVP2080 - CCD Camera Image Signal Processor
NVP2170E - High End CCD Image Signal Processor
NVP2400 - Megapixel CMOS ISP
NVP1004 - 4-Channel Video decoder
NVP1114A - 4-Ch Video Decoder

Full PDF Text Transcription

Click to expand full text

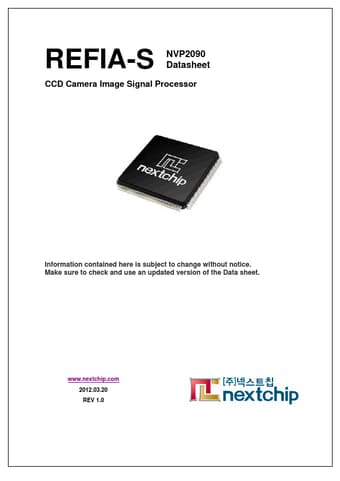

REFIA-S NVP2090 Datasheet CCD Camera Image Signal Processor Information contained here is subject to change without notice. Make sure to check and use an updated version of the Data sheet. www.nextchip.com 2012.03.20 REV 1.0 REFIA-S (NVP2090) CCD Image Signal Processor Interlaced CCD Image Signal Processor REFIA-S(Revolutional Effective Functions In Acquisition) is an image signal processor(ISP) device which outputs CVBS or S-Video data format after receiving color filter array(CFA) patterns from color-interlaced CCD sensor, which is processed through an internal encoder and DAC. REFIA-S internally includes AFE (It features a 25 MHz single-channel architecture designed to sample the outputs of CCD arrays.
