NSCW100

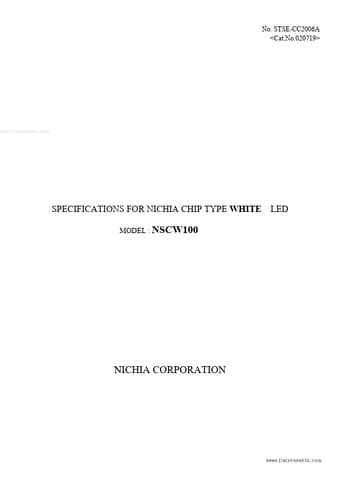

No. STSE-CC2006A <Cat.No.020719>
..
SPECIFICATIONS FOR NICHIA CHIP TYPE WHITE LED
MODEL : NSCW100
NICHIA CORPORATION
-0-
Nichia STSE-CC2006A <Cat.No.020719> 1.SPECIFICATIONS (1) Absolute Maximum Ratings Item Forward Current Pulse Forward Current Reverse Voltage Power Dissipation Operating Temperature .. Storage Temperature Soldering Temperature
Symbol IF IFP VR PD Topr Tstg Tsld
Absolute Maximum Rating 25 80 5 100 -30 ~ + 85 -40 ~ +100 Reflow Soldering : 260°C Hand Soldering : 350°C
(Ta=25°C) Unit m A m A V m W °C °C for 10sec. for 3sec.
IFP Conditions : Pulse Width < = 10msec. and Duty < = 1/10
(2) Initial Electrical/Optical Characteristics Item Symbol Forward Voltage VF Reverse Current IR Rank T Iv Luminous Intensity Rank S Iv Rank R Iv
Condition IF=20[m A] VR= 5[V] IF=20[m A] IF=20[m A] IF=20[m A]
Min. 440 310 220
Typ. 3.6 520 370 260
(Ta=25°C) Max. Unit 4.0 V 50 µA 620 mcd 440 mcd 310 mcd
! Measurement Uncertainty of the Luminous Intensity : ± 10%
Color Ranks x y x y...
