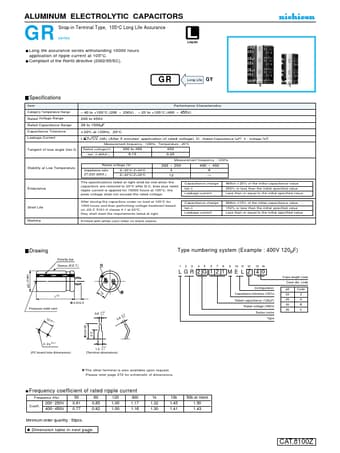

ALUMINUM ELECTROLYTIC CAPACITORS
GR Snap-in Terminal Type, 105°C Long Life Assurance series
Long life assurance series withstanding 10000 hours application of ripple current at 105°C. Compliant of the RoHS directive (2002/95/EC).
GR
Long Life GY
Specifications
Item Category Temperature Range Rated Voltage Range Rated Capacitance Range Capacitance Tolerance Leakage Current
Tangent of loss angle (tan δ)
Stability at Low Temperature
Performance Characteristics
– 40 to +105°C (200 250V) , – 25 to +105°C (400 450V)
200 to 450V
39 to 1500µF
± 20% at 120Hz, 20°C
I 3 CV (µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF) V : Voltage (V)]
Measurement frequency : 120Hz, Temperature : 20°C
Rated voltage(V)
200 to 400
450
tan δ (MAX.)
0.15
0.
LGR2W560MELZ35 Datasheet
