Datasheet Details
Part number:
LLG2C821MELZ35, LLG
Manufacturer:
Nichicon
File Size:
51.61 KB
Description:
Aluminum electrolytic capacitors.
Note:
This datasheet PDF includes multiple part numbers: LLG2C821MELZ35, LLG.
Please refer to the document for exact specifications by model.

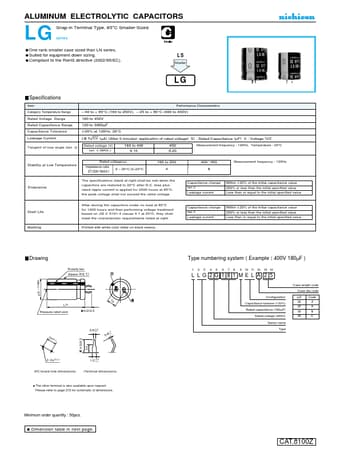

LLG2C821MELZ35, LLG, ALUMINUM ELECTROLYTIC CAPACITORS
ALUMINUM ELECTROLYTIC CAPACITORS LG Snap-in Terminal Type, 85°C Smaller-Sized series One rank smaller case sized than LN series.
Suited for equipment down sizing.
Compliant to the RoHS directive (2002/95/EC).
LS Smaller LG Specifications Item Category Temperature Range Rated Voltage Range Rated Capacitance Range Capacitance Tolerance Leakage Current Performance Characteristics 40 to + 85°C (160 to 250V), 25 to + 85°C (400 to 450V) 160 to 450V 120 to 3900µF ± 20% at 120H
