C120P04QE - Dual Diodes

Nihon Inter Electronics Corporation

📥 Download Datasheet

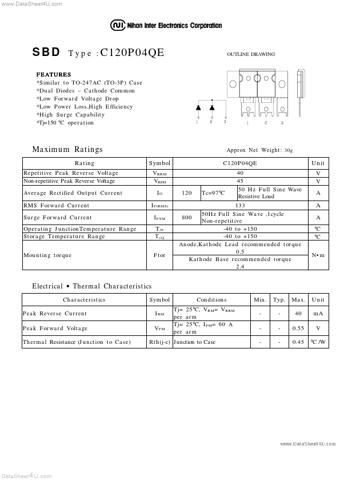

C120P04QE Datasheet Preview — Preview of C120P04QE PDF

datasheet Preview Page 2

Datasheet Details

Part number: C120P04QE
Manufacturer: Nihon Inter Electronics Corporation
File Size: 163.27 KB
Datasheet: C120P04QE_NihonInterElectronicsCorporation.pdf
Description: Dual Diodes

C120P04QE Product details

Features

Similar to TO-247AC (TO-3P) Case.
Dual Diodes.
Cathode Common.
Low Forward Voltage Drop.
Low Power Loss,High Efficiency.
High Surge Capability.
Tj=150 °C operation Maximum Ratings Rating Repetitive Peak Reverse Voltage Non-repetitive Peak Reverse Voltage Average Rectified Output Current RMS Forward Current Surge Forward Current Operating JunctionTemperature Range Storage Temperature Range Mounting torque Approx Net Weight: 30g Symbol VRRM VRSM IO IF(RMS) IFSM.
