21DQ09
Nihon Inter Electronics
23.10 KB
Sbd.

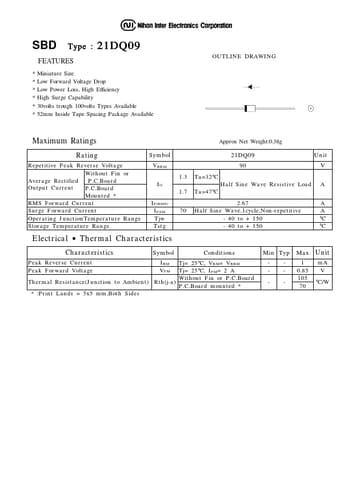

SBD Type : 21DQ09
FEATURES
* Miniature Size * Low Forward Voltage Drop * Low Power Loss, High Effici.
ency * High Surge Capability * 30volts trough 100volts Types Available * 52mm Inside Tape Spacing Pa.
