FCU20B60 Datasheet - Nihon Inter Electronics

FCU20B60 FRED

20A Avg. 600 Volts FRED FCU20B60 INSTANTANEOUS FORWARD CURRENT (A) 50 20 10 5 2 1 0 FORWARD CURRENT VS. VOLTAGE FCU20B60 Tj=25˚C Tj=150˚C 1 23 INSTANTANEOUS FORWARD VOLTAGE (V) 4 AVERAGE FORWARD POWER DISSIPATION (W) 0˚ 180˚ θ CONDUCTION ANGLE 60 50 40 30 20 10 0 0 AVERAGE FORWARD POWER DISSIPATION FCU20B60 RECT 180˚ SINE WAVE 4 8 12 16 20 AVERAGE FORWARD CURRENT (A) 24 0˚ 180˚ θ CONDUCTION ANGLE 24 RECT 180˚ 20 SINE WAVE AVERAGE FORWARD CURRENT VS. CASE TEMPERATURE FCU20B60 AV.

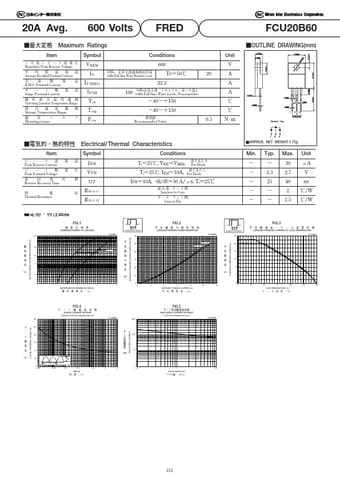

FCU20B60 Datasheet (105.05 KB)

FCU20B60 Datasheet Preview — Preview of FCU20B60 PDF

Datasheet Details

Part number:

FCU20B60

Manufacturer:

Nihon Inter Electronics

File Size:

105.05 KB

Description:

Fred.
