PT200S16, PT200S12 - DIODE MODULE

PT200S16 Description

www.DataSheet4U.com DIODE MODULE .

PT200S16 Features

* Isolated Base
* 3 Phase Bridge Circuit
* Designed Power Circuit Board
* High Surge Capability

PT200S16 Applications

* Rectified For General Use Maximum Ratings Parameter Repetitive Peak Reverse Voltage
* 1 Non Repetitive Peak Reverse Voltage
* 1 Approx Net Weight:370g Symbol VRRM VRSM Type / Grade PT200S12 1200 1300 PT200S16 1600 1750 Max Rated Value Unit V Parameter Average Rectified Output Curren

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PT200S16, PT200S12. Please refer to the document for exact specifications by model.

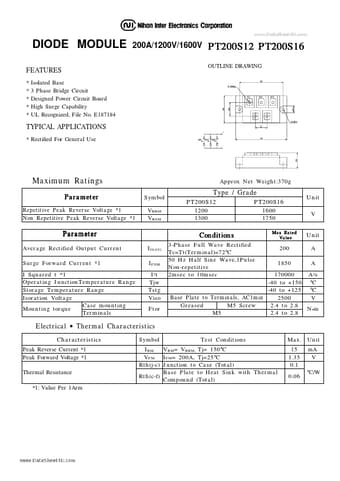

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT200S16, PT200S12
Manufacturer
Nihon Inter Electronics
File Size
147.61 KB
Datasheet
PT200S12_NihonInterElectronics.pdf
Description
DIODE MODULE
Note
This datasheet PDF includes multiple part numbers: PT200S16, PT200S12.
Please refer to the document for exact specifications by model.
