TCH30B10-11A - SBD

Nihon Inter Electronics

Datasheet Details

Part number	TCH30B10-11A
Manufacturer	Nihon Inter Electronics
File Size	145.44 KB
Description	SBD
Datasheet	TCH30B10-11A Datasheet
Additional preview pages of the TCH30B10-11A datasheet.

📁 Similar Datasheet

TCH30B10-11A - Schottky Barrier Diode (Kyocera)
TCH30A15 - Schottky Barrier Diode (Kyocera)
TCH30A15-11A - Schottky Barrier Diode (Kyocera)
TCH-xx - 50/60HZ LOW PROFILE UL APROVED TRANSFORMERS 2W-14W (Premo)
TCH10A15 - Schottky Barrier Diode (Kyocera)
TCH10A15-11A - Schottky Barrier Diode (Kyocera)
TCH20A15 - Schottky Barrier Diode (Kyocera)
TCH20A15-11A - Schottky Barrier Diode (Kyocera)
TCHB50-100CT - Termination (ACC)
TCHB50-10CT - Termination (ACC)

Other Datasheets by Nihon Inter Electronics

TCH30B10 - SBD
TCH30A15 - Shottky Barrier Diode
TCH30A15-11A - Schottky Barrier Diode
TCH30C10 - SBD
TCH30C10-11A - SBD
TCH10A15 - Shottky Barrier Diode
TCH10A15-11A - Shottky Barrier Diode
TCH20A15 - Shottky Barrier Diode

Full PDF Text Transcription

Click to expand full text

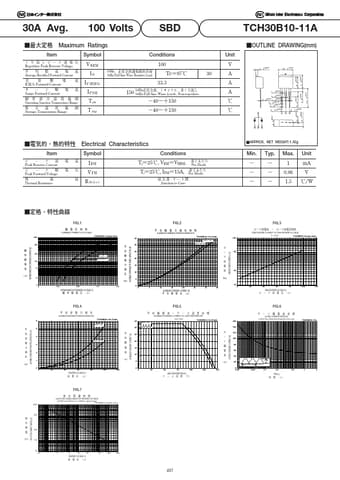

30A Avg. 100 Volts SBD TCH30B10-11A INSTANTANEOUS FORWARD CURRENT (A) AVERAGE REVERSE POWER DISSIPATION (W) 100 50 20 10 5 2 1 0 FORWARD CURRENT VS. VOLTAGE TCH30B10-11A (per Arm) Tj=25˚CC∞ Tj=150˚C˚CCC 0.4 0.8 INSTANTANEOUS FORWARD VOLTAGE (V) 1.2 1.6 AVERAGE FORWARD POWER DISSIPATION (W) 35 30 25 20 15 10 5 0 0 AVERAGE FORWARD POWER DISSIPATION TCH30B10-11A (Total) RECT 180˚ SINE WAVE 5 10 15 20 25 30 35 AVERAGE FORWARD CURRENT (A) PEAK REVERSE CURRENT (mA) PEAK REVERSE CURRENT VS.
