L1085TG, L1085XG-Niko Datasheet - Niko-Sem

L1085TG 3A Adjustable Low Dropout Linear Regulator

The L1085G is a positive and low dropout three-terminal voltage regulator with 3A output current capability. This device is designed for use in low voltage applications that offers lower dropout voltage and faster transient response. This device is fully protected against over current faults, over t.

L1085TG Features

* the low dropout of maximum 1.45 volts. The L1085G Series regulators are available in the popular industry standard TO-220 TO-263 and TO-252 packages. FEATURES z Very easy to use, it requires only two external resistors to set the output voltage z Low dropout voltage: 1.3V typical at up to 3A z Low

L1085XG-Niko-Sem.pdf

This datasheet PDF includes multiple part numbers: L1085TG, L1085XG-Niko. Please refer to the document for exact specifications by model.

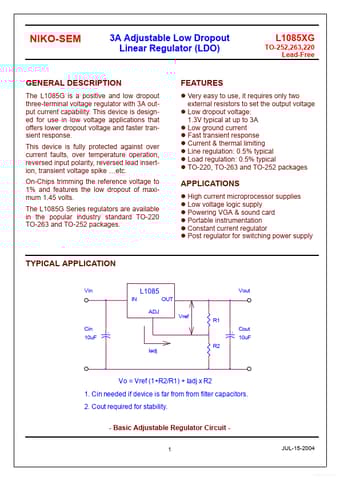

L1085TG Datasheet Preview Page 2 L1085TG Datasheet Preview Page 3

Datasheet Details

Part number:

L1085TG, L1085XG-Niko

Manufacturer:

Niko-Sem

File Size:

162.77 KB

Description:

3a adjustable low dropout linear regulator.

Note:

This datasheet PDF includes multiple part numbers: L1085TG, L1085XG-Niko.
Please refer to the document for exact specifications by model.
