SMIH-05VDC-S-L-C Datasheet - NingBo Songle

SMIH-05VDC-S-L-C Relay

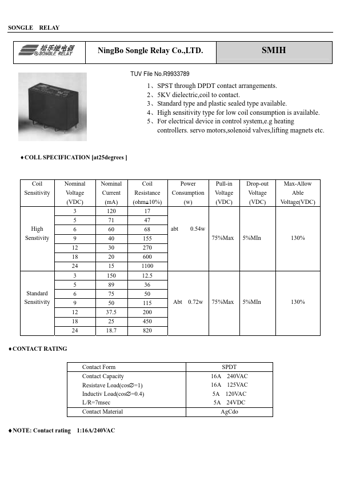

SONGLE RELAY NingBo Songle Relay Co.,LTD. TUV File No.R9933789 SMIH 1、SPST through DPDT contact arrangements. 2、5KV dielectric,coil to contact. 3、Standard type and plastic sealed type available. 4、High sensitivity type for low coil consumption is available. 5、For electrical device in control system,e.g heating controllers. servo motors,solenoid valves,lifting magnets etc. !COLL SPECIFICATION [at25degrees ] Coil Sensitivity Nominal Voltage (VDC) 3 5 Nominal Current (mA) 120 71 60 40 30 20.

SMIH-05VDC-S-L-C Datasheet (126.27 KB)

Preview of SMIH-05VDC-S-L-C PDF

Datasheet Details

Part number:

SMIH-05VDC-S-L-C

Manufacturer:

NingBo Songle

File Size:

126.27 KB

Description:

Relay.
