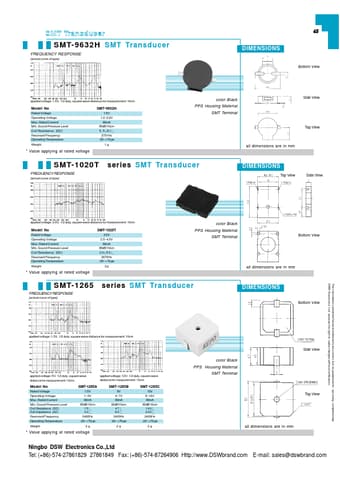

SMT-1020T
SMT Transducer
SMT-9632H SMT Transducer
FREQUENCY RESPONSE
[actual curve of type]
DIMENSIONS
Bottom View applied voltage: 1.5V. 1/2 duty, square wave distance for measurement: 10cm
Model No Rated Voltage Operating Voltage Max. Rated Current Min. Sound Pressure Level Coil Resistance (DC) Resonant Frequency Operating Temperature Weight
- Value applying at rated voltage
SMT-9632H 1.5V
1.0~2.0V 80m A
85d B/10cm 5.5¡À1¦¸
2731Hz -25~+70¡æ
1g color Black PPS Housing Material
SMT Terminal
Side View Top View all dimensions are in mm
FREQUENCY RESPONSE [actual curve of type] series SMT Transducer
DIMENSIONS
Top View
Side View
The information contained herein is believed to be correct, but no guarantee for accuracy, pleteness DSW Electronics Ltd. reseves the right to make changes without notification. applied voltage: 3.6V. 1/2 duty, square wave distance for measurement: 10cm
Model No Rated Voltage Operating Voltage Max. Rated Current Min. Sound Pressure Level Coil...
