SMT-1265B, SMT-9632H Datasheet - Ningbo

SMT-1265B - Buzzer

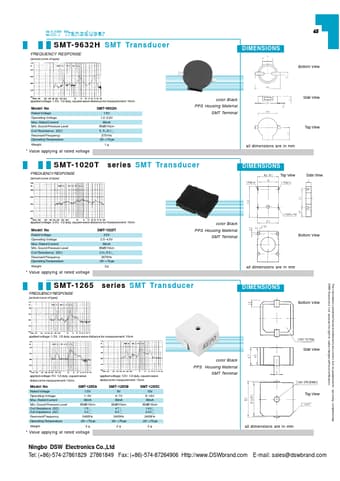

SMT Transducer SMT-9632H SMT Transducer FREQUENCY RESPONSE [actual curve of type] DIMENSIONS 45 Bottom View applied voltage: 1.5V.

1/2 duty, square wave distance for measurement: 10cm Model No Rated Voltage Operating Voltage Max.

Rated Current Min.

Sound Pressure Level Coil Resistance (DC) Resonant Frequency Operating Temperature Weight Value applying at rated voltage SMT-9632H 1.5V 1.0~2.0V 80mA 85dB/10cm 5.5¡À1¦¸ 2731Hz -25~+70¡æ 1g color Black PPS Housing Material SMT Terminal Si

SMT-9632H-Ningbo.pdf

This datasheet PDF includes multiple part numbers: SMT-1265B, SMT-9632H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMT-1265B, SMT-9632H

Manufacturer:

Ningbo

File Size:

89.48 KB

Description:

Buzzer.

Note:

This datasheet PDF includes multiple part numbers: SMT-1265B, SMT-9632H.
Please refer to the document for exact specifications by model.
