SMT-1265C - Buzzer

This page provides the datasheet information for the SMT-1265C, a member of the SMT-9632H Buzzer family.

📥 Download Datasheet

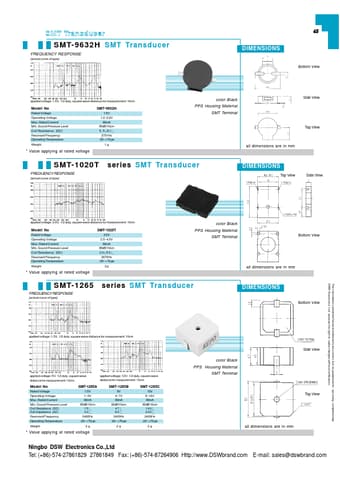

Datasheet preview – SMT-1265C

Datasheet Details

Part number SMT-1265C
Manufacturer Ningbo
File Size 89.48 KB
Description Buzzer
Datasheet download datasheet SMT-1265C Datasheet
Additional preview pages of the SMT-1265C datasheet.

📁 Similar Datasheet

  • SMT-12 - Resonator (Projects Unlimited)
  • SMT-100 - Phase Control Thyristor (SEMPO ELECTRONIC)
  • SMT-16 - Phase Control Thyristor (SEMPO ELECTRONIC)
  • SMT-200 - Phase Control Thyristor (SEMPO ELECTRONIC)
  • SMT-25 - Phase Control Thyristor (SEMPO ELECTRONIC)
  • SMT-300 - Phase Control Thyristor (SEMPO ELECTRONIC)
  • SMT-320 - Phase Control Thyristor (SEMPO ELECTRONIC)
  • SMT-40 - Phase Control Thyristor (SEMPO ELECTRONIC)
  • SMT-50 - Phase Control Thyristor (SEMPO ELECTRONIC)
  • SMT-SLD - SpiceLED InGaN M-Spice (DOMINANT Semiconductors)
Other Datasheets by Ningbo

Full PDF Text Transcription

Click to expand full text
SMT Transducer SMT-9632H SMT Transducer FREQUENCY RESPONSE [actual curve of type] DIMENSIONS 45 Bottom View applied voltage: 1.5V. 1/2 duty, square wave distance for measurement: 10cm Model No Rated Voltage Operating Voltage Max. Rated Current Min. Sound Pressure Level Coil Resistance (DC) Resonant Frequency Operating Temperature Weight * Value applying at rated voltage SMT-9632H 1.5V 1.0~2.0V 80mA 85dB/10cm 5.5¡À1¦¸ 2731Hz -25~+70¡æ 1g color Black PPS Housing Material SMT Terminal Side View Top View all dimensions are in mm SMT-1020T FREQUENCY RESPONSE [actual curve of type] series SMT Transducer DIMENSIONS Top View Side View The information contained herein is believed to be correct, but no guarantee for accuracy, completeness DSW Electronics Ltd.
