QS7785PF 3D 2/4-Channel Stereo Surround Synthesizer

Nippon Precision Circuits Inc

Description

QS7785PF/CF NIPPON PRECISION CIRCUITS INC.3D 2/4-Channel Stereo Surround Synthesizer OVERVIEW The QS7785PF/CF is an audio processor IC that generat.
Name Number Parallel 1 2 3 4 5 6 7 8 SP 9. 10 11 BYP 12. SUR 13. 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 3.

📥 Download Datasheet

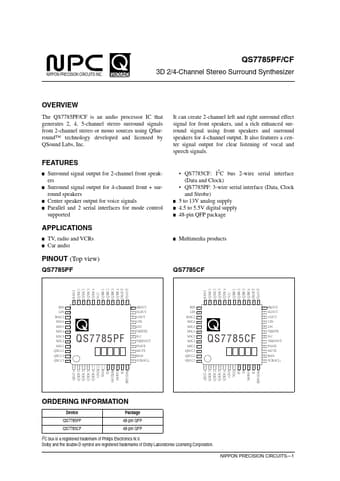

QS7785PF Datasheet Preview — Preview of QS7785PF PDF

Datasheet Specifications

Part number: QS7785PF
Manufacturer: Nippon Precision Circuits Inc
File Size: 185.00 KB
Datasheet: QS7785PF_NipponPrecisionCircuitsInc.pdf
Description: 3D 2/4-Channel Stereo Surround Synthesizer

Features

* a center signal output for clear listening of vocal and speech signals. FEATURES I I I I Surround signal output for 2-channel front speakers Surround signal output for 4-channel front + surround speakers Center speaker output for voice signals Parallel and 2 serial interfaces for mode control su

Applications

* I I TV, radio and VCRs Car audio I Multimedia products PINOUT (Top view) QS7785PF FROUT FLOUT QXAC1 QXAC2 QXAC3 QXAC4 QXBC1 QXBC2 QXBC3 QXBC4 QS7785CF FROUT 26 QXAC1 QXAC2 QXAC3 QXAC4 QXBC1 QXBC2 QXBC3 36 35 34 33 32 31 30 29 28 27 26 25 36 35 34 33 32 31 30 29 28 2
