SM5007, Crystal Oscillator

SM5007 series NIPPON PRECISION CIRCUITS INC.Crystal Oscillator Module ICs OVERVIEW The SM5007 series are crystal oscillator module ICs, that featur.
and PAD DIMENSIONS Number 1 2 3 4 5 6 7 8 Name INH XT XT VSS Q NC NC VDD I/O I I O. O. Description Output state.

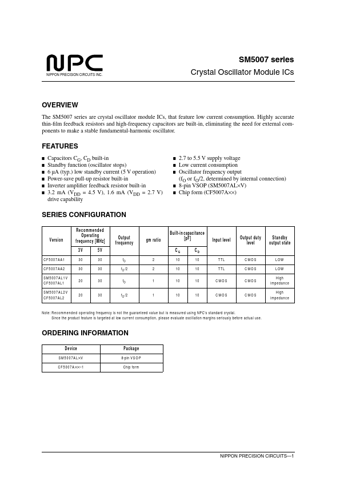

datasheet Preview Page 1 from Datasheet4u.com

SM5007_NipponPrecisionCircuitsInc.pdf

SM5007 Datasheet Preview — Preview of SM5007 PDF

Datasheet Details

Part number:

SM5007

Manufacturer:

Nippon Precision Circuits Inc

File Size:

111.00 KB

Description:

Crystal Oscillator

Features

* I I I I I I Capacitors CG, CD built-in Standby function (oscillator stops) 6 µA (typ. ) low standby current (5 V operation) Power-save pull-up resistor built-in Inverter ampliﬁer feedback resistor built-in 3.2 mA (VDD = 4.5 V), 1.6 mA (VDD = 2.7 V) drive capability I I I I I 2.7 to 5.5 V supply v
