PFC35TH Datasheet - Nippon Pulse

PFC35TH Stepper Motor

Tin-Can Steppers 14.9 PFC35TH 11.5 Specifications Specification Type of Winding Excitation Mode Step Angle Steps Per Revolution Rated Voltage Resistance Inductance Holding Torque Starting Pulse Rate Slewing Pulse Rate Operating Temp. Range Temperature Rise Operating Temp. Range Weight Dielectric Strength Insulation Class Unit ˚ V Ω mH mN m pps pps ˚C ˚C ˚C g AC V PFC35TH-48 Unipolar 2-2 7.5 ±5% 48 9 37 14 33 400 470 -10 to +50 70 +100 80 AC500V (1 min.) Clas.

PFC35TH Datasheet (345.33 KB)

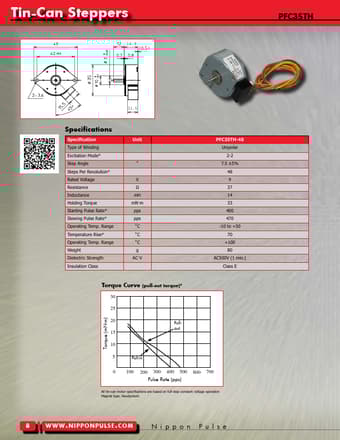

Preview of PFC35TH PDF

Datasheet Details

Part number:

PFC35TH

Manufacturer:

Nippon Pulse

File Size:

345.33 KB

Description:

Stepper motor.
