M1603

S-band Magnetron

M1603 General Description

M1603 is a mechanical tuned pulsed type S-band magnetron intended primarily for linear accelerator. It is water cooled and has circle waveguide output type. It is designed to operate in the frequency range of 2.993 to 3.002 GHz with a peak output power of 1.5 MW. A magnet must be installed for opera.

M1603 Datasheet (887.72 KB)

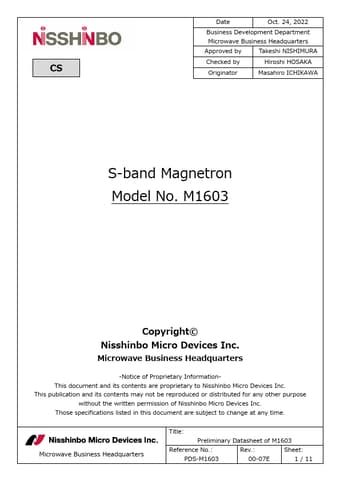

Preview of M1603 PDF

Datasheet Details

Part number:

M1603

Manufacturer:

Nisshinbo

File Size:

887.72 KB

Description:

S-band magnetron.
CS Date Oct. 24, 2022 Business Development Department Microwave Business Headquarters Approved by Takeshi NISHIMURA Checked by Hiroshi HOSAKA .
