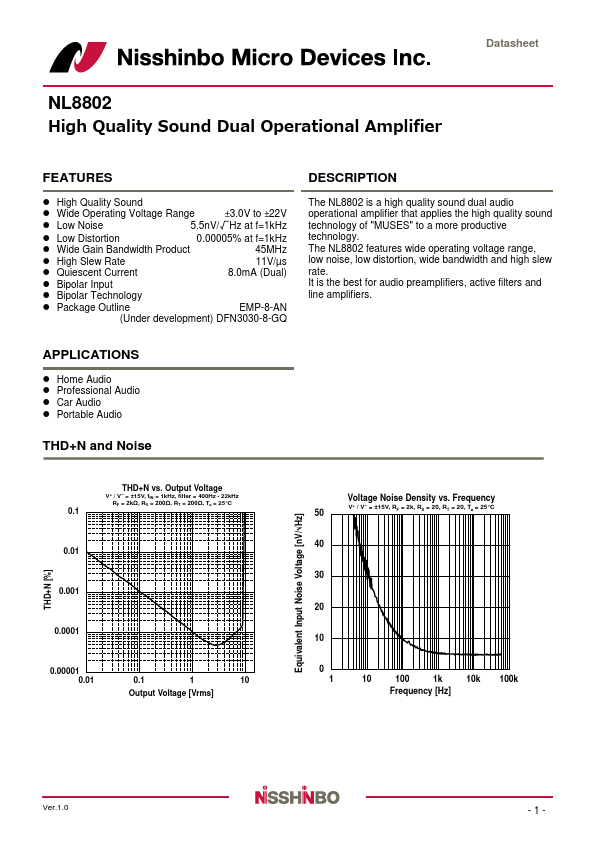

NL8802 - High Quality Sound Dual Operational Amplifier

Nisshinbo

NL8802 Datasheet Preview — Preview of NL8802 PDF

Datasheet Details

Part number	NL8802
Manufacturer	Nisshinbo
File Size	1.37 MB
Description	High Quality Sound Dual Operational Amplifier
Datasheet	NL8802-Nisshinbo.pdf

NL8802 Product details

Description

The NL8802 is a high quality sound dual audio operational amplifier that applies the high quality sound technology of "MUSES" to a more productive technology.

Features

High Quality Sound.
Wide Operating Voltage Range ±3.0V to ±22V.
Low Noise 5.5nV/√Hz at f=1kHz.
Low Distortion 0.00005% at f=1kHz.
Wide Gain Bandwidth Product 45MHz.
High Slew Rate 11V/µs.
Quiescent Current 8.0mA (Dual).
Bipolar Input.
Bipolar Technology.
Package Outline EMP-8-AN (Under development) DFN3030-8-GQ.
