NT1189GDAE3S High Linearity Low Noise Amplifier

Nisshinbo

Description

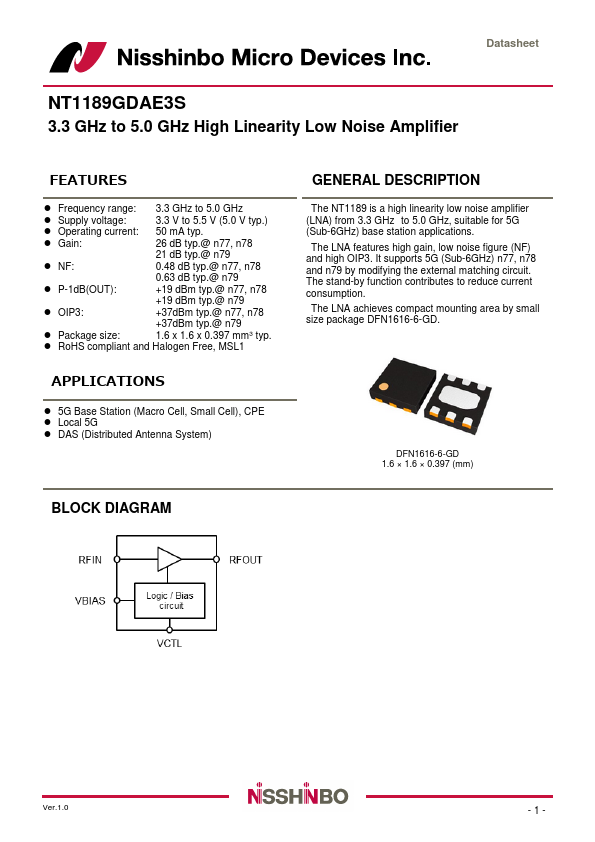

Datasheet NT1189GDAE3S 3.3 GHz to 5.0 GHz High Linearity Low Noise Amplifier .
The NT1189 is a high linearity low noise amplifier (LNA) from 3.

📥 Download Datasheet

NT1189GDAE3S Datasheet Preview — Preview of NT1189GDAE3S PDF

Datasheet Specifications

Part number: NT1189GDAE3S
Manufacturer: Nisshinbo
File Size: 1.58 MB
Datasheet: NT1189GDAE3S-Nisshinbo.pdf
Description: High Linearity Low Noise Amplifier

Features

* Frequency range: 3.3 GHz to 5.0 GHz
* Supply voltage: 3.3 V to 5.5 V (5.0 V typ. )
* Operating current: 50 mA typ.
* Gain: 26 dB typ. @ n77, n78 21 dB typ. @ n79
* NF: 0.48 dB typ. @ n77, n78 0.63 dB typ. @ n79
* P-1dB(OUT): +19 dBm typ. @ n77, n78 +19 dBm typ. @ n79

Applications

* 5G Base Station (Macro Cell, Small Cell), CPE
* Local 5G
