R1114D - LOW NOISE 150mA LDO REGULATOR

Product Overview

Nisshinbo

Datasheet Details

Part number	R1114D
Manufacturer	Nisshinbo
File Size	305.79 KB
Description	LOW NOISE 150mA LDO REGULATOR
Datasheet	R1114D Datasheet

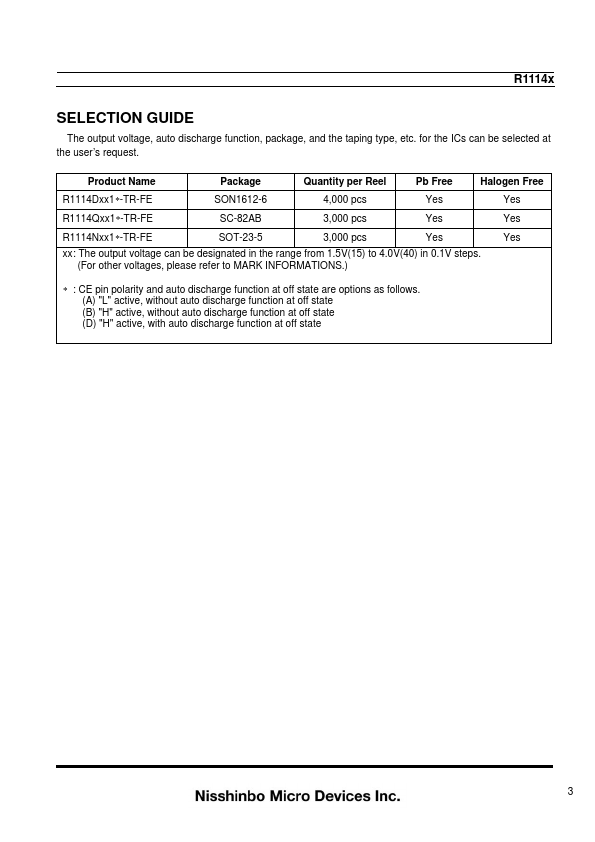

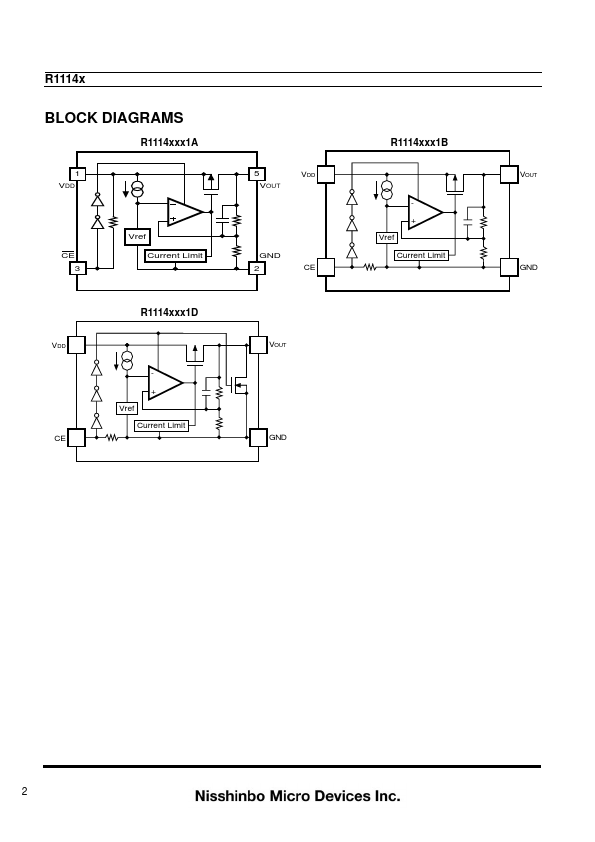

Additional preview pages of the R1114D datasheet.

Product details

Description

R1114D Pin No.1 2 Symbol VDD GND 3 VOUT 4 NC 5 GND 6 CE or CE R1114Q Pin No.1 2 3 4 Symbol CE or CE GND VOUT VDD R1114N Pin No.1 2 3 4 5 Symbol VDD GND CE or CE NC VOUT 1 2 Input Pin Ground Pin Output pin No Connection Ground Pin Chip Enable Pin Chip Enable Pin Ground Pin Output pin Input Pin Input Pin Ground Pin Chip Enable Pin No Connection Output pin 123 Description Description Description 4 R1114x ABSOLUTE MAXIMUM RATINGS Symbol Item

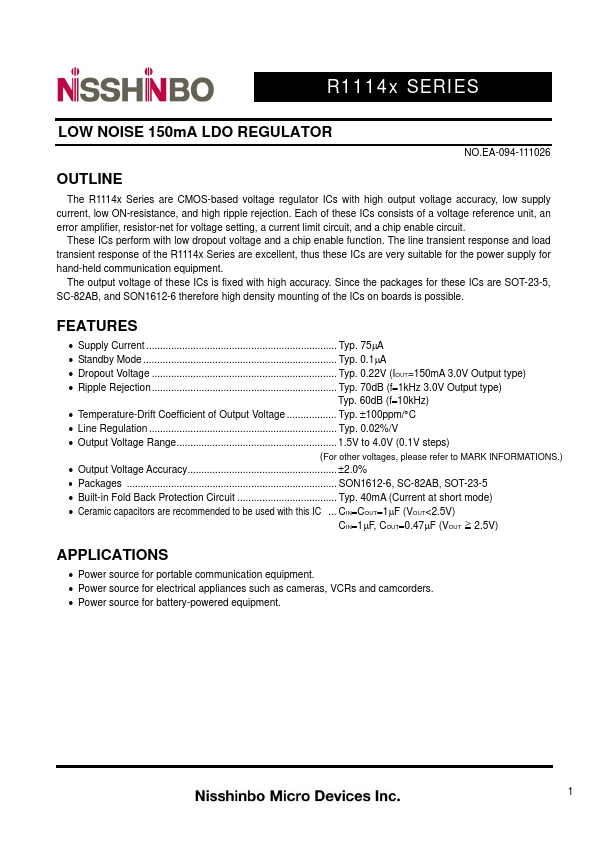

Features

Supply Current Typ. 75μA.
Standby Mode Typ. 0.1μA.
Dropout Voltage Typ. 0.22V (IOUT=150mA 3.0V Output type).
Ripple Rejection Typ. 70dB (f=1kHz 3.0V Output type) Typ. 60dB (f=10kHz).
Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C.
Line Regulation Typ. 0.02%/V.
Output Voltage Range 1.5V to 4.0V (0.1V steps) (For other voltages, please refer to MARK.
